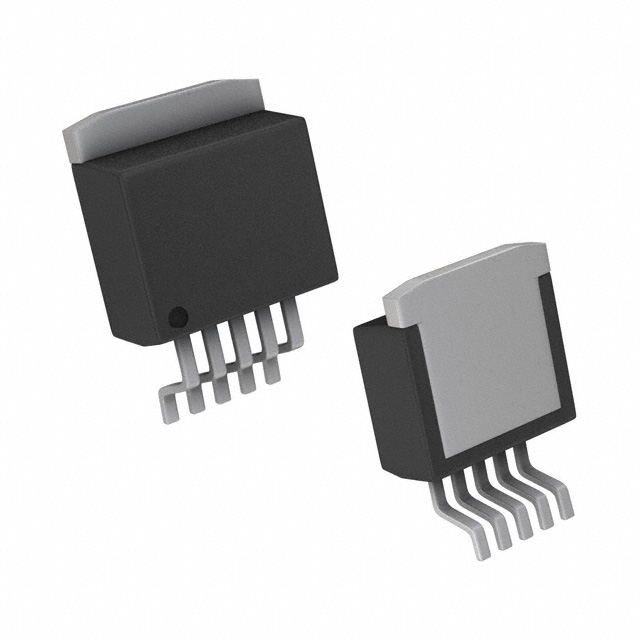

BD800M5WFP2-CE2 Rohm Semiconductor
Favorite
Compare
Manufacturer:
Rohm Semiconductor
MFR Product Number:
BD800M5WFP2-CE2
Product Number:
BD800M5WFP2-CE2
MFR Standard Lead Time:
17 Weeks
Package/Case:
TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Detailed Description:
IC REG LIN POS ADJ 500MA TO263-5
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA TO-263-5
In Stock
35
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Rohm Semiconductor
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
42V
Voltage - Output (Min/Fixed)
1.2V
Voltage - Output (Max)
16V
Voltage Dropout (Max)
0.87V 500mA
Current - Output
500mA
Current - Quiescent (Iq)
34 µA
Current - Supply (Max)
53 µA
PSRR
70dB (120Hz)
Control Features
Enable
Protection Features
Over Current, Over Temperature, Reverse Polarity
Operating Temperature
-40°C ~ 150°C (TJ)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount
Package / Case
TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Supplier Device Package
TO-263-5
Base Product Number
BD800
Documents & Media
Video File
What is a Voltage Regulator Another Teaching Moment | Digi-Key Electronics
Digital Datasheet - ROHM's Low Quiescent Current Automotive LDOs
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
500
