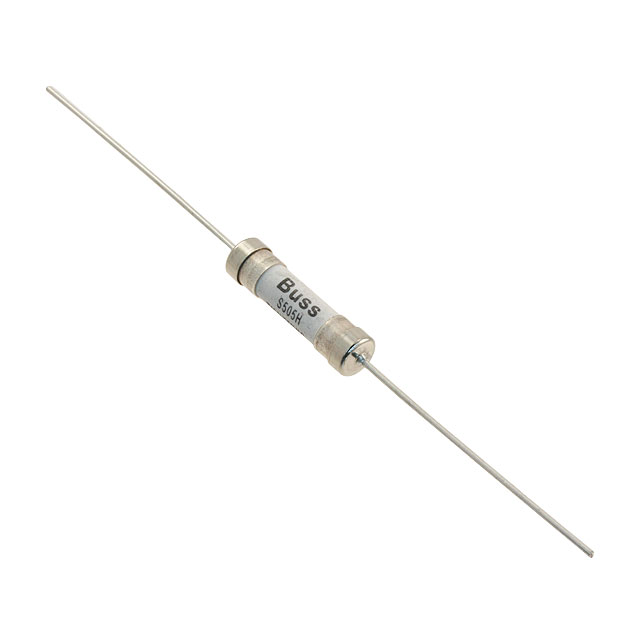

BK-S505H-V-20-R Eaton - Electronics Division
Favorite
Compare
Manufacturer:
Eaton - Electronics Division
MFR Product Number:
BK-S505H-V-20-R
Product Number:
BK-S505H-V-20-R
MFR Standard Lead Time:
13 Weeks
Package/Case:
5mm x 20mm (Axial)
Detailed Description:
FUSE CERAMIC 20A 500VAC 5X20MM
Datasheet:
Descnt:
20 A 500 V AC DC Fuse Cartridge, Ceramic Through Hole 5mm x 20mm (Axial)
In Stock
254
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Eaton - Electronics Division
Series
S505H
Packaging
Bulk
Part Status
Active
Mounting Type
Through Hole
Fuse Type
Cartridge, Ceramic
Current Rating (Amps)
20 A
Voltage Rating - AC
500 V
Response Time
Slow Blow
Package / Case
5mm x 20mm (Axial)
Breaking Capacity Rated Voltage
200A
Melting I²t
1500.0
Approval Agency
cURus, UL
Operating Temperature
-55°C ~ 125°C
Color
-
Size / Dimension
0.218" Dia x 0.831" L (5.54mm x 21.10mm)
DC Cold Resistance
0.00325 Ohms
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8536.10.0040
-
Additional Resources
Other Names
Standard Package
100
