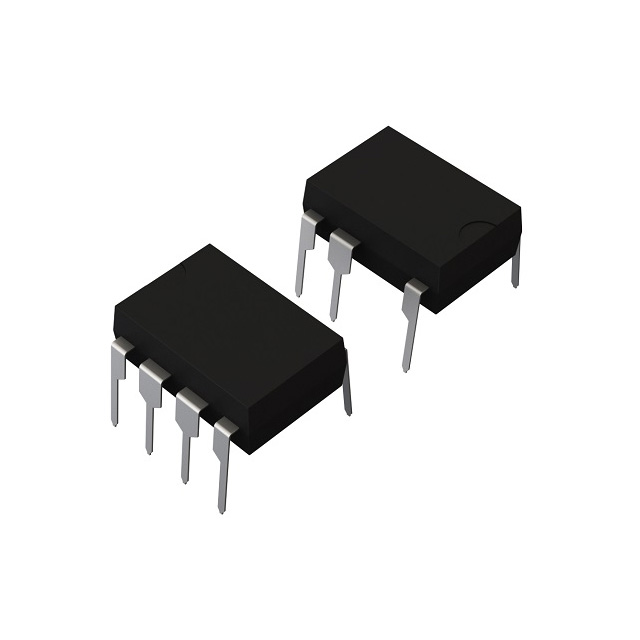

BM2P101X-Z Rohm Semiconductor
Favorite
Compare
Manufacturer:
Rohm Semiconductor
MFR Product Number:
BM2P101X-Z
Product Number:
BM2P101X-Z
MFR Standard Lead Time:
26 Weeks
Package/Case:
8-DIP (0.300\, 7.62mm), 7 Leads
Detailed Description:
NON-ISOLATED TYPE PWM DC/DC CONV
Datasheet:
Descnt:
Converter Offline Buck Topology 65kHz 7-DIPK
In Stock
2000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Rohm Semiconductor
Series
-
Packaging
Tube
Part Status
Active
Output Isolation
Non-Isolated
Internal Switch(s)
Yes
Voltage - Breakdown
650V
Topology
Buck
Voltage - Start Up
7.7 V
Voltage - Supply (Vcc/Vdd)
9.5V ~ 10.8V
Duty Cycle
40%
Frequency - Switching
65kHz
Fault Protection
Current Limiting, Open Circuit, Over Temperature, Over Voltage, UVLO
Control Features
Soft Start
Operating Temperature
-40°C ~ 105°C (TA)
Package / Case
8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package
7-DIPK
Mounting Type
Through Hole
Base Product Number
BM2P101
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
846-BM2P101X-Z
Standard Package
50
