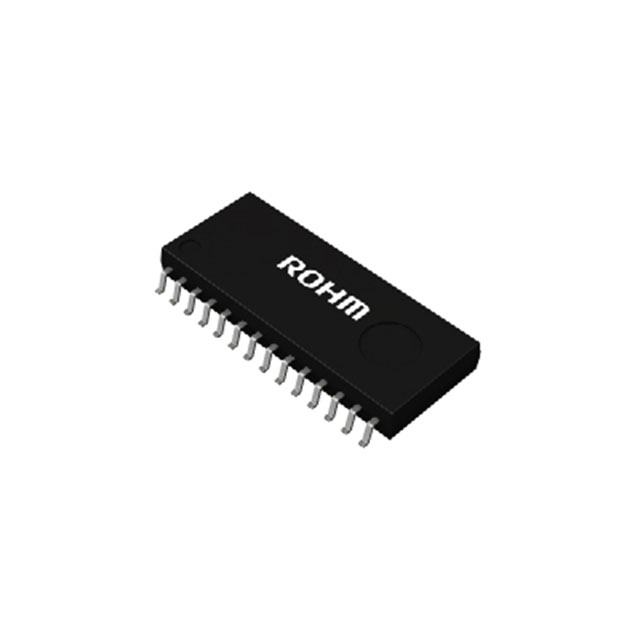

BS2132F-E2 Rohm Semiconductor
Favorite
Compare
Manufacturer:
Rohm Semiconductor
MFR Product Number:
BS2132F-E2
Product Number:
BS2132F-E2
MFR Standard Lead Time:
Package/Case:
28-SOIC (0.295\, 7.50mm Width)
Detailed Description:
600V HIGH VOLTAGE 3 PHASE BRIDGE
Datasheet:
Descnt:
High-Side Gate Driver IC Non-Inverting 28-SOP
In Stock
21
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Rohm Semiconductor
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Obsolete
DigiKey Programmable
Not Verified
Driven Configuration
High-Side
Channel Type
3-Phase
Number of Drivers
3
Gate Type
IGBT, N-Channel MOSFET
Voltage - Supply
11.5V ~ 20V
Logic Voltage - VIL, VIH
0.8V, 2.6V
Current - Peak Output (Source, Sink)
-
Input Type
Non-Inverting
High Side Voltage - Max (Bootstrap)
600 V
Rise / Fall Time (Typ)
125ns, 50ns
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
28-SOIC (0.295", 7.50mm Width)
Supplier Device Package
28-SOP
Base Product Number
BS2132
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
1,500
