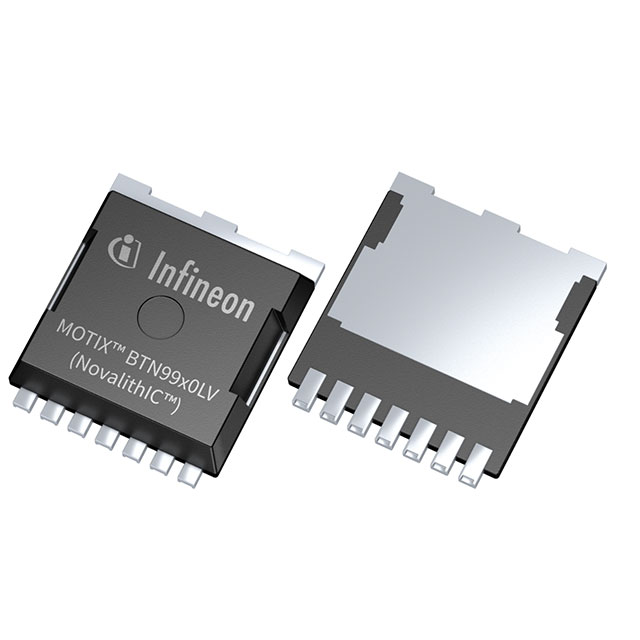

BTN9970LVAUMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
BTN9970LVAUMA1
Product Number:
BTN9970LVAUMA1
MFR Standard Lead Time:
52 Weeks
Package/Case:
7-PowerSFN
Detailed Description:
IC HALF BRIDGE DRIVER HSOF-7
Datasheet:
Descnt:
Half Bridge Driver DC Motors, General Purpose MOSFET (Metal Oxide) PG-HSOF-7-1
In Stock
875
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
NovalithIC™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Configuration
Half Bridge
Applications
DC Motors, General Purpose
Interface
Logic, PWM
Load Type
Capacitive and Resistive
Technology
MOSFET (Metal Oxide)
Rds On (Typ)
-
Current - Output / Channel
-
Current - Peak Output
-
Voltage - Supply
8V ~ 18V
Voltage - Load
8V ~ 18V
Operating Temperature
-40°C ~ 150°C (TJ)
Features
Charge Pump
Fault Protection
Over Current, Over Temperature, Short Circuit, UVLO
Mounting Type
Surface Mount
Package / Case
7-PowerSFN
Supplier Device Package
PG-HSOF-7-1
Base Product Number
BTN9970
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,000
