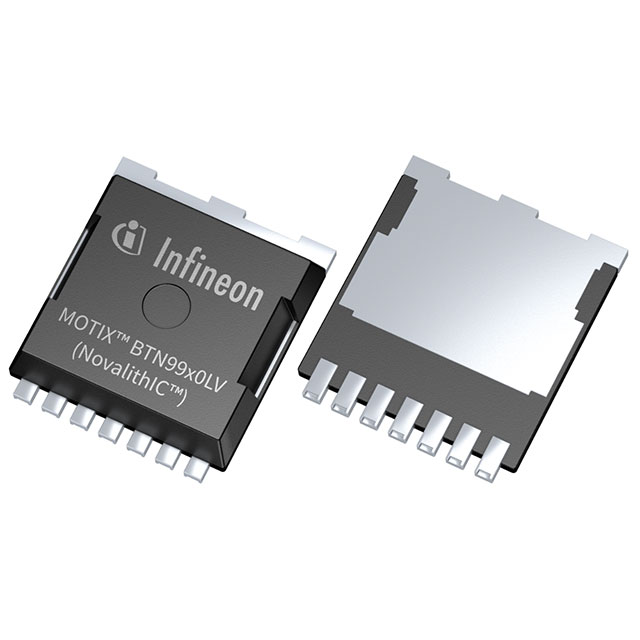

BTN9990LVAUMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
BTN9990LVAUMA1
Product Number:
BTN9990LVAUMA1
MFR Standard Lead Time:
52 Weeks
Package/Case:
7-PowerSFN
Detailed Description:
IC HALF BRIDGE DRIVER HSOF-7
Datasheet:
Descnt:
Half Bridge (3) Driver DC Motors, General Purpose MOSFET (Metal Oxide) PG-HSOF-7-1
In Stock
8
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
MOTIX™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Configuration
Half Bridge (3)
Applications
DC Motors, General Purpose
Interface
Logic, PWM
Load Type
Inductive
Technology
MOSFET (Metal Oxide)
Rds On (Typ)
5.3Ohm LS, 5.3Ohm HS
Current - Output / Channel
-
Current - Peak Output
-
Voltage - Supply
8V ~ 18V
Voltage - Load
8V ~ 18V
Operating Temperature
-
Features
Charge Pump
Fault Protection
Over Current, Over Temperature, Short Circuit, UVLO
Mounting Type
Surface Mount
Package / Case
7-PowerSFN
Supplier Device Package
PG-HSOF-7-1
Base Product Number
BTN9990
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,000
