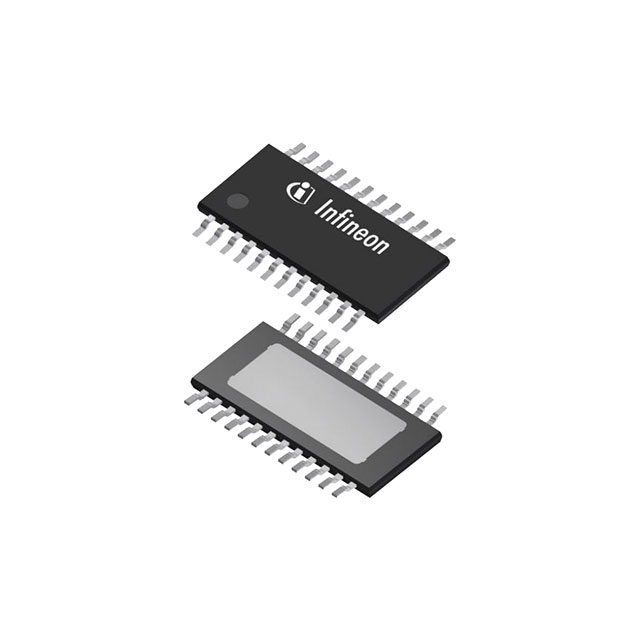

BTS700121ESPXUMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
BTS700121ESPXUMA1
Product Number:
BTS700121ESPXUMA1
MFR Standard Lead Time:
Package/Case:
24-TSSOP (0.154\, 3.90mm Width) Exposed Pad
Detailed Description:
PROFET PG-TSDSO-24
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 31.3A PG-TSDSO-24
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Infineon Technologies
Series
PROFET®
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
Logic
Voltage - Load
6V ~ 18V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
31.3A
Rds On (Typ)
1.4mOhm
Input Type
Non-Inverting
Features
-
Fault Protection
Current Limiting (Fixed), Over Temperature, UVLO
Operating Temperature
-40°C ~ 150°C (TJ)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount
Supplier Device Package
PG-TSDSO-24
Package / Case
24-TSSOP (0.154", 3.90mm Width) Exposed Pad
Base Product Number
BTS70012
Documents & Media
Datasheets
Featured Product
PROFET+2 12V BTS70012-1ESP Evaluation Board
Altivar™ Soft Starter ATS480
PCN Obsolescence/ EOL
Mult Dev Wafer/EOL Chg 28/Feb/2023
EOL BTS700- 09/Mar/2023
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
