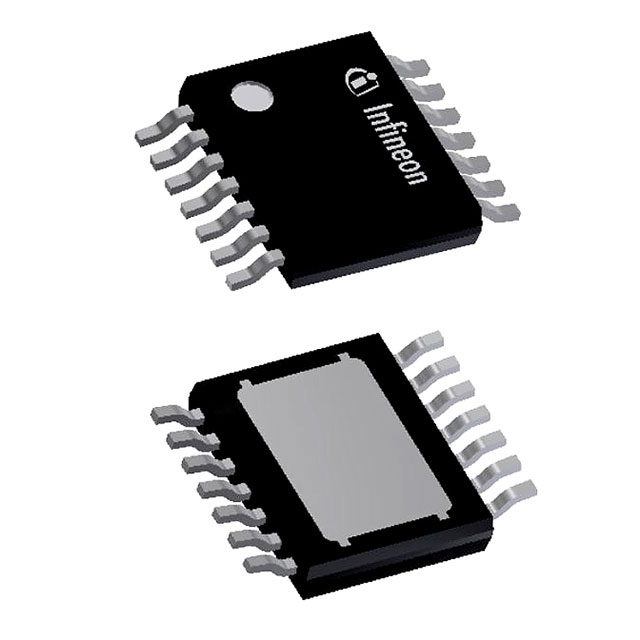

BTS70021EPPXUMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
BTS70021EPPXUMA1
Product Number:
BTS70021EPPXUMA1
MFR Standard Lead Time:
39 Weeks
Package/Case:
14-TSSOP (0.154\, 3.90mm Width) Exposed Pad
Detailed Description:
IC PWR SWTCH N-CHAN 1:1 TSDSO-14
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 21A PG-TSDSO-14-22
In Stock
10519
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Infineon Technologies
Series
PROFET®
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
6V ~ 18V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
21A
Rds On (Typ)
2.6mOhm
Input Type
Non-Inverting
Features
-
Fault Protection
Over Current, Over Voltage, Short Circuit, UVLO
Operating Temperature
-40°C ~ 150°C (TJ)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount
Supplier Device Package
PG-TSDSO-14-22
Package / Case
14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Base Product Number
BTS7002
Documents & Media
Environmental Information
PCN Design/Specification
Mult Dev Datasheet Chg 11/Dec/2019
SMART7 DS Chg 9/Apr/2021
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
