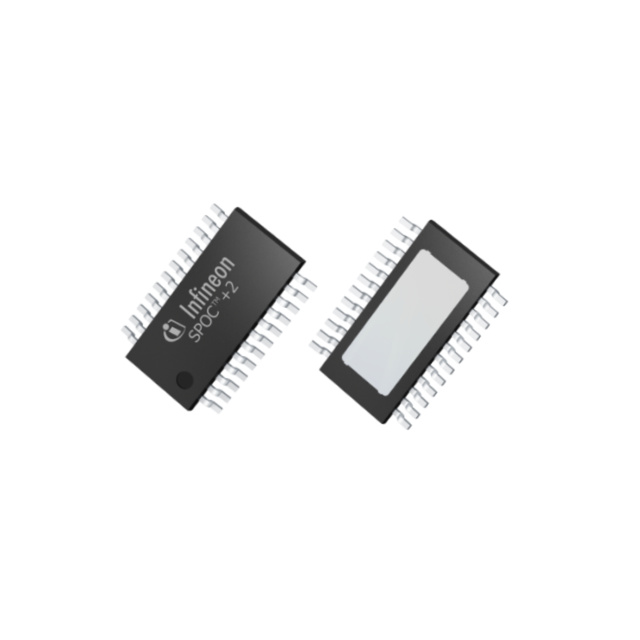

BTS710336ESPXUMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
BTS710336ESPXUMA1
Product Number:
BTS710336ESPXUMA1
MFR Standard Lead Time:
39 Weeks
Package/Case:
24-TSSOP (0.154\, 3.90mm Width) Exposed Pad
Detailed Description:
SPOC PG-TSDSO-24
Datasheet:
Descnt:
Power Switch/Driver 1:5 N-Channel 1.5A, 1.5A, 1.5A, 3A, 3A PG-TSDSO-24-42
In Stock
2924
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Infineon Technologies
Series
SPOC™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
Relay, Solenoid Driver
Number of Outputs
5
Ratio - Input:Output
1:5
Output Configuration
High Side
Output Type
N-Channel
Interface
PWM, SPI
Voltage - Load
6V ~ 28V
Voltage - Supply (Vcc/Vdd)
3V ~ 5.5V
Current - Output (Max)
1.5A, 1.5A, 1.5A, 3A, 3A
Rds On (Typ)
22.5mOhm, 70mOhm
Input Type
Non-Inverting
Features
Load Discharge, PWM Input, Slew Rate Controlled, Status Flag
Fault Protection
Current Limiting (Fixed), Over Load, Over Temperature, Over Voltage, Reverse Battery, Short Circuit, UVLO
Operating Temperature
-40°C ~ 150°C (TJ)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount
Supplier Device Package
PG-TSDSO-24-42
Package / Case
24-TSSOP (0.154", 3.90mm Width) Exposed Pad
Base Product Number
BTS71033
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
