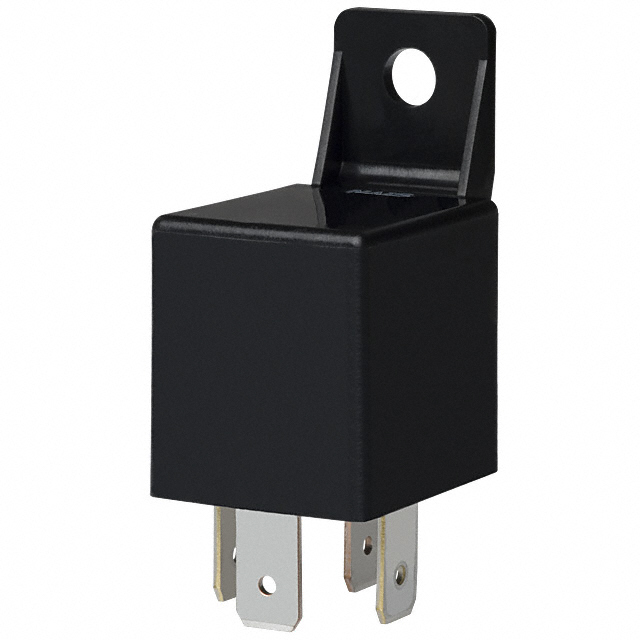

CB1A-R-M-12V Panasonic Electric Works
Favorite
Compare
Manufacturer:
Panasonic Electric Works
MFR Product Number:
CB1A-R-M-12V
Product Number:
CB1A-R-M-12V
MFR Standard Lead Time:
24 Weeks
Package/Case:
Detailed Description:
RELAY AUTOMOTIVE SPST 40A 12V
Datasheet:
Descnt:
In Stock
1796
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Panasonic Electric Works
Series
CB
Packaging
Bulk
Part Status
Active
Coil Type
Non Latching
Coil Current
134 mA
Coil Voltage
12VDC
Contact Form
SPST-NO (1 Form A)
Contact Rating (Current)
40 A
Switching Voltage
14VDC - Nom
Must Operate Voltage
7 VDC
Must Release Voltage
1.2 VDC
Operate Time
15 ms
Release Time
15 ms
Features
Resistor, Sealed - Fully
Mounting Type
Chassis Mount
Termination Style
Quick Connect - 0.250" (6.3mm)
Operating Temperature
-40°C ~ 85°C
Contact Material
Silver Alloy, Cadmium Free
Coil Power
1.6W
Coil Resistance
89.5 Ohms
Base Product Number
CB1A
Documents & Media
Video File
Relay Basics - Another Teaching Moment | DigiKey Electronics
How to Choose a Relay - Another Teaching Moment
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8536.41.0050
-
Additional Resources
Other Names
Standard Package
50
