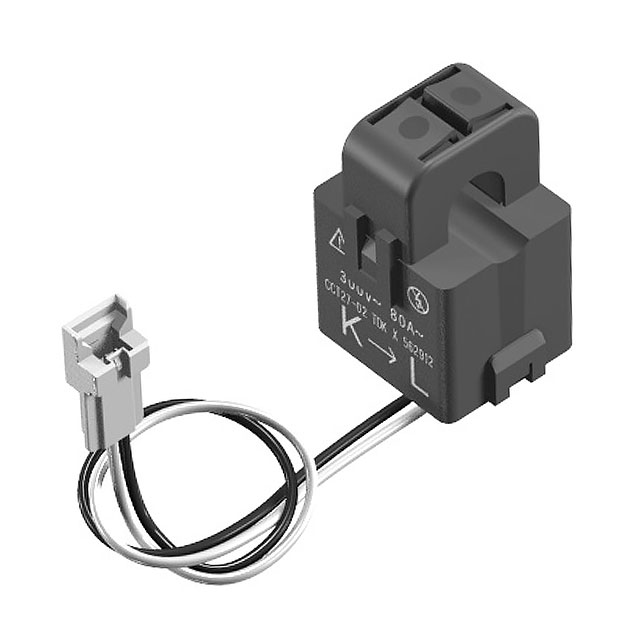

CCT272440-80-10-02 TDK Corporation
Favorite
Compare
Manufacturer:
TDK Corporation
MFR Product Number:
CCT272440-80-10-02
Product Number:
CCT272440-80-10-02
MFR Standard Lead Time:
20 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 80A CHAS MNT
Datasheet:
Descnt:
80 A Current Sense Transformer 50/60Hz 352Ohm Chassis Mount
In Stock
89
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
TDK Corporation
Series
CCT
Packaging
Bulk
Part Status
Active
Frequency Range
50/60Hz
Type
Non-Invasive (Split Core)
Current Rating (Amps)
80 A
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
-
Current Ratio
3000:1
DC Resistance (DCR)
352Ohm
Ratings
-
Mounting Type
Chassis Mount
Size / Dimension
1.201" L x 1.083" W (30.50mm x 27.50mm)
Height - Seated (Max)
1.634" (41.50mm)
Termination Style
Wire Leads with Connector
Weight
0.08 lb (36.29 g)
-
Documents & Media
HTML Datasheet
Clamp Type AC Current Sensors Prod Info
CCT Series
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
9030.33.3400
-
Additional Resources
Other Names
445-173067
Standard Package
36
