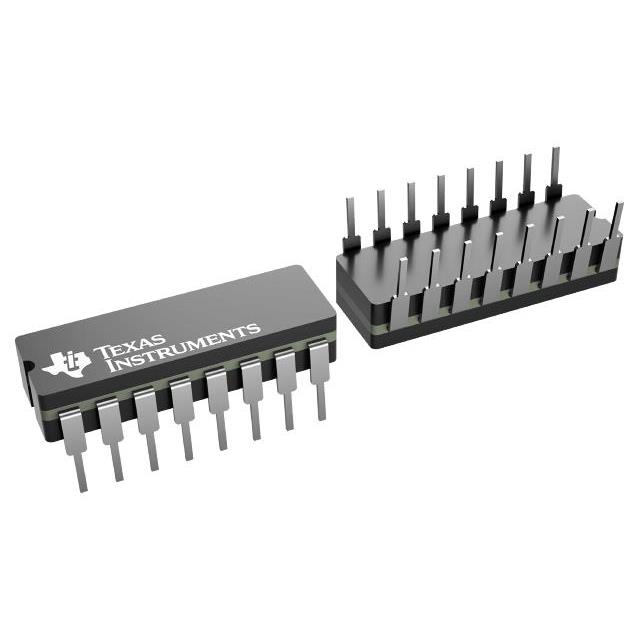

CD4009UBF3A Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
CD4009UBF3A
Product Number:
CD4009UBF3A
MFR Standard Lead Time:
Package/Case:
16-CDIP (0.300\, 7.62mm)
Detailed Description:
IC INVERTER 6CH 6-INP 16CDIP
Datasheet:
Descnt:
Inverter IC 6 Channel 16-CDIP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tube
Part Status
Active
Logic Type
Inverter
Number of Circuits
6
Number of Inputs
6
Features
-
Voltage - Supply
3V ~ 18V
Current - Quiescent (Max)
20 µA
Current - Output High, Low
3mA, 36mA
Input Logic Level - Low
1V ~ 2.5V
Input Logic Level - High
4V ~ 12.5V
Max Propagation Delay V, Max CL
60ns 15V, 50pF
Operating Temperature
-55°C ~ 125°C
Mounting Type
Through Hole
Supplier Device Package
16-CDIP
Package / Case
16-CDIP (0.300", 7.62mm)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
296-CD4009UBF3A
Standard Package
1
