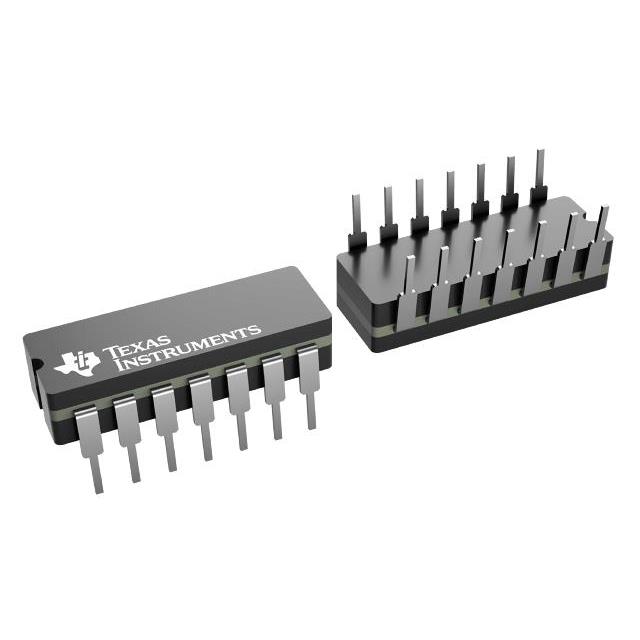

CD54HCT74F Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
CD54HCT74F
Product Number:
CD54HCT74F
MFR Standard Lead Time:
Package/Case:
14-CDIP (0.300\, 7.62mm)
Detailed Description:
HIGH SPEED CMOS LOGIC DUAL POSIT
Datasheet:
Descnt:
Flip Flop 2 Element D-Type 1 Bit Positive Edge 14-CDIP (0.300", 7.62mm)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Texas Instruments
Series
54HCT
Packaging
Tube
Part Status
Active
Function
Set(Preset) and Reset
Type
D-Type
Output Type
Complementary
Number of Elements
2
Number of Bits per Element
1
Clock Frequency
25 MHz
Max Propagation Delay V, Max CL
40ns 4.5V, 50pF
Trigger Type
Positive Edge
Current - Output High, Low
4mA, 4mA
Voltage - Supply
4.5V ~ 5.5V
Current - Quiescent (Iq)
4 µA
Input Capacitance
10 pF
Operating Temperature
-55°C ~ 125°C (TA)
Mounting Type
Through Hole
Supplier Device Package
14-CDIP
Package / Case
14-CDIP (0.300", 7.62mm)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
Additional Resources
Other Names
296-CD54HCT74F
Standard Package
1
