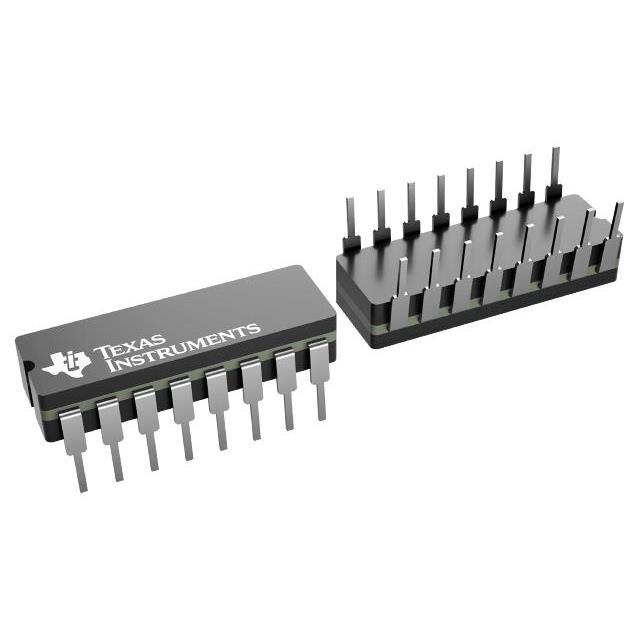

CD54HCT85F3A Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
CD54HCT85F3A
Product Number:
CD54HCT85F3A
MFR Standard Lead Time:
Package/Case:
16-CDIP (0.300\, 7.62mm)
Detailed Description:
IC COMPARATOR MAG 4BIT 16CDIP
Datasheet:
Descnt:
Magnitude Comparator Bit Active High Output A<B, A=B, A>B 16-CDIP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Texas Instruments
Series
-
Packaging
Tube
Part Status
Active
Type
Magnitude Comparator
Number of Bits
4
Output
Active High
Output Function
A<B, A=B, A>B
Voltage - Supply
4.5V ~ 5.5V
Current - Output High, Low
4mA, 4mA
Max Propagation Delay V, Max CL
40ns 4.5V, 50pF
Current - Quiescent (Iq)
8 µA
Operating Temperature
-55°C ~ 125°C
Package / Case
16-CDIP (0.300", 7.62mm)
Supplier Device Package
16-CDIP
Mounting Type
Through Hole
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
Additional Resources
Other Names
Standard Package
1
