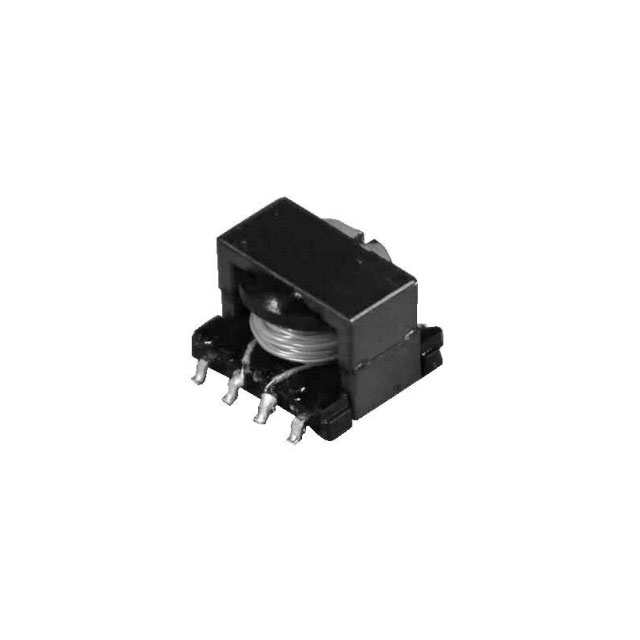

CEER117-AX05-15-007 Sumida America Components Inc.
Favorite
Compare
Manufacturer:
Sumida America Components Inc.
MFR Product Number:
CEER117-AX05-15-007
Product Number:
CEER117-AX05-15-007
MFR Standard Lead Time:
Package/Case:
Detailed Description:
XFMR FLYBACK DC/DC CONV 7.2UH SM
Datasheet:
Descnt:
Flyback Converters For For DC/DC Converters SMPS Transformer 2500Vrms Isolation 400kHz Surface Mount
In Stock
76
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Sumida America Components Inc.
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
For DC/DC Converters
Applications
Flyback Converters
Intended Chipset
ACPL-32JT, BM60051FV, BM60052AFV, BM60054AFV, BM60055FV, BM60056FV
Chipset Manufacturer
Broadcom, ROHM
Voltage - Primary
12V
Voltage - Auxiliary
5V 50mA
Voltage - Isolation
2500Vrms
Inductance Frequency
7.2µH 100kHz, 13.8µH 100kHz, 120µH 100kHz
Frequency
400kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Size / Dimension
0.449" L x 0.390" W (11.40mm x 9.90mm)
Height - Seated (Max)
0.331" (8.40mm)
Footprint
0.508" L x 0.449" W (12.90mm x 11.40mm)
Style
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8504.31.4035
Additional Resources
Other Names
Standard Package
300
