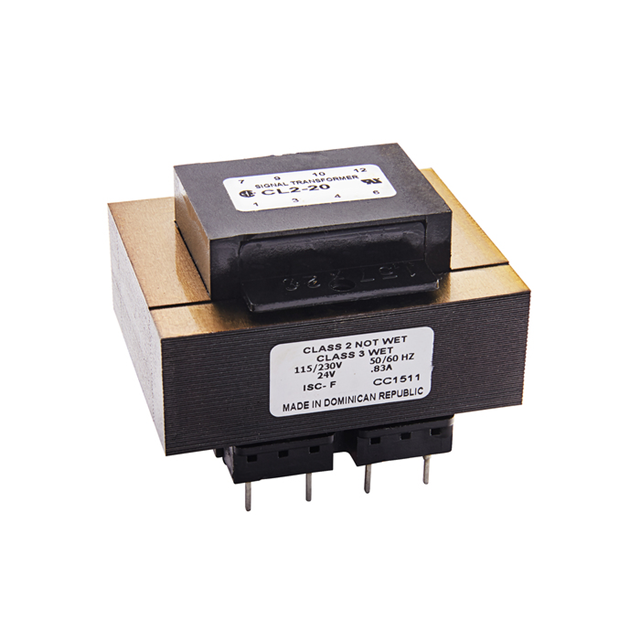

CL2-20-24 Signal Transformer
Favorite
Compare
Manufacturer:
Signal Transformer
MFR Product Number:
CL2-20-24
Product Number:
CL2-20-24
MFR Standard Lead Time:
20 Weeks
Package/Case:
Detailed Description:
PWR XFMR LAMINATED 20VA TH
Datasheet:
Descnt:
In Stock
659
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Signal Transformer
Series
CL2
Packaging
Bulk
Part Status
Active
Type
Laminated Core
Voltage - Primary
115V, 230V
Voltage - Secondary (Full Load)
24V
Current - Output (Max)
833mA
Primary Winding(s)
Dual
Secondary Winding(s)
Single
Center Tap
No
Power - Max
20VA
Mounting Type
Through Hole
Termination Style
PC Pin
Size / Dimension
57.20mm L x 47.60mm W
Height - Seated (Max)
41.30mm
Voltage - Isolation
4000Vrms
Weight
0.9 lb (408.23 g)
Documents & Media
Datasheets
Environmental Information
Signal Transformer REACH
RoHS EU Declaration Signal Transformer
RoHS EU Declaration Signal Transformer
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
25
