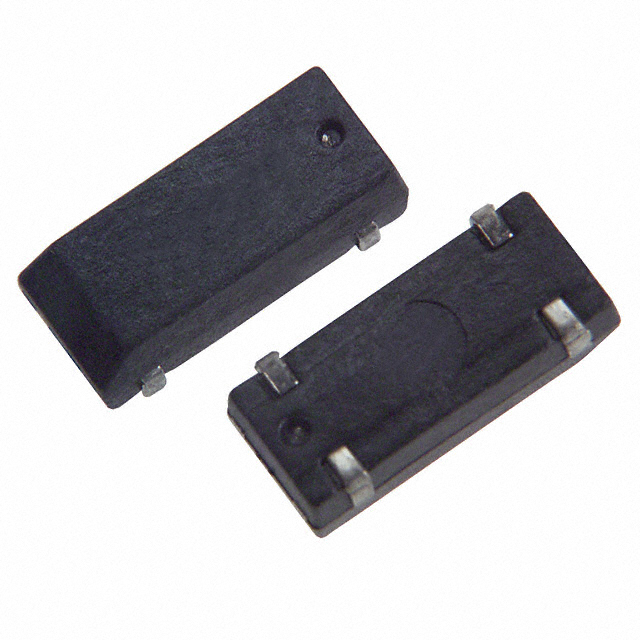

CM250S77.503KAZFT Citizen Finedevice Co Ltd
Favorite
Compare
Manufacturer:
Citizen Finedevice Co Ltd
MFR Product Number:
CM250S77.503KAZFT
Product Number:
CM250S77-503KAZFT
MFR Standard Lead Time:
Package/Case:
4-SOJ, 5.50mm pitch
Detailed Description:
CRYSTAL 77.5030KHZ 12.5PF SMD
Datasheet:
Descnt:
77.503 kHz ±30ppm Crystal 12.5pF 50 kOhms 4-SOJ, 5.50mm pitch
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Citizen Finedevice Co Ltd
Series
CM250S
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Type
kHz Crystal (Tuning Fork)
Frequency
77.503 kHz
Frequency Stability
-
Frequency Tolerance
±30ppm
Load Capacitance
12.5pF
ESR (Equivalent Series Resistance)
50 kOhms
Operating Mode
Fundamental
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Surface Mount
Package / Case
4-SOJ, 5.50mm pitch
Size / Dimension
0.311" L x 0.146" W (7.90mm x 3.70mm)
Height - Seated (Max)
0.098" (2.50mm)
-
Documents & Media
Product Drawings
CM250(C,S) Series Circuit
CM250(C,S) Series Side 2
CM250(C,S) Series Top
CM250(C,S) Series Footprint
CM250(C,S) Series Side 1
-
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.60.0020
-
Additional Resources
Other Names
Standard Package
3,000
