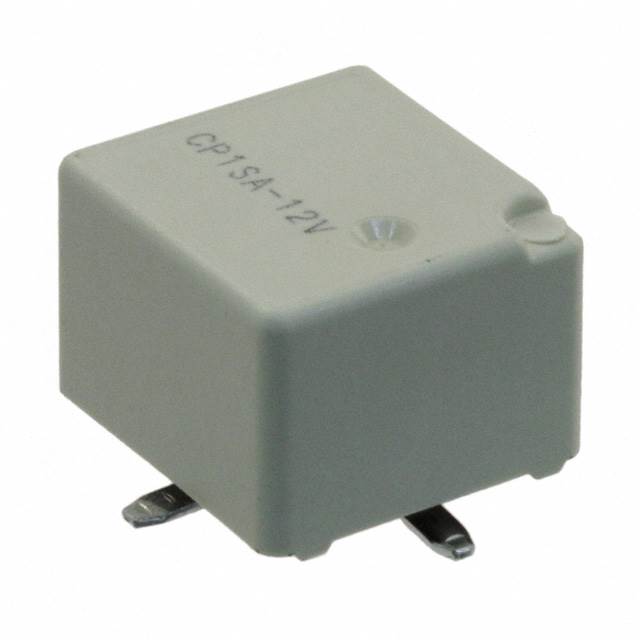

CP1SA-12V-Z Panasonic Electric Works
Favorite
Compare
Manufacturer:
Panasonic Electric Works
MFR Product Number:
CP1SA-12V-Z
Product Number:
CP1SA-12V-Z
MFR Standard Lead Time:
24 Weeks
Package/Case:
Detailed Description:
RELAY AUTOMOTIVE SPDT 20A 12V
Datasheet:
Descnt:
In Stock
3152
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Panasonic Electric Works
Series
CP
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Coil Type
Non Latching
Coil Current
53.3 mA
Coil Voltage
12VDC
Contact Form
SPDT (1 Form C)
Contact Rating (Current)
20 A
Switching Voltage
14VDC - Nom
Must Operate Voltage
7.2 VDC
Must Release Voltage
1 VDC
Operate Time
10 ms
Release Time
10 ms
Features
Sealed - Fully
Mounting Type
Surface Mount
Termination Style
Gull Wing
Operating Temperature
-40°C ~ 85°C
Contact Material
Silver Alloy, Cadmium Free
Coil Power
640mW
Coil Resistance
225 Ohms
Base Product Number
CP1SA
Documents & Media
Video File
Relay Basics - Another Teaching Moment | DigiKey Electronics
How to Choose a Relay - Another Teaching Moment
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
REACH Status
Vendor Undefined
ECCN
EAR99
HTSUS
8536.41.0050
Additional Resources
Other Names
Standard Package
300
