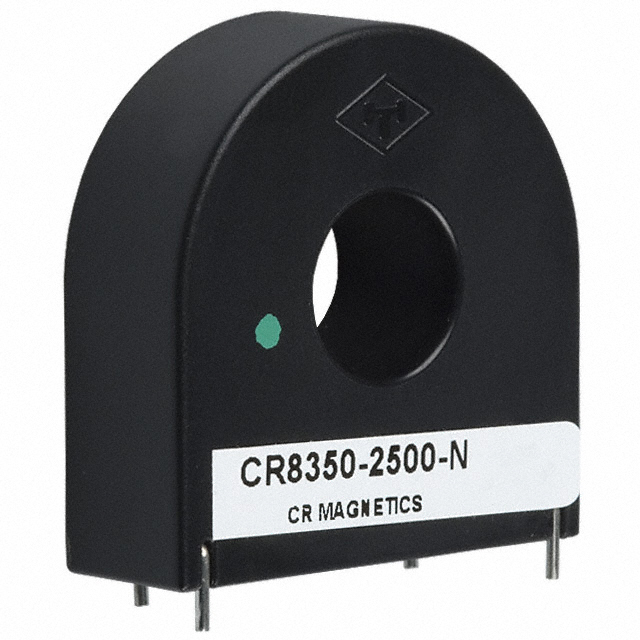

CR8350-2500-N CR Magnetics Inc.
Favorite
Compare
Manufacturer:
CR Magnetics Inc.
MFR Product Number:
CR8350-2500-N
Product Number:
CR8350-2500-N
MFR Standard Lead Time:
20 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 100A T/H
Datasheet:
Descnt:
100 A Current Sense Transformer 20Hz ~ 1kHz 57Ohm Through Hole
In Stock
5300
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
CR Magnetics Inc.
Series
CR8300
Packaging
Bulk
Part Status
Active
Frequency Range
20Hz ~ 1kHz
Type
Non-Invasive (Solid Core)
Current Rating (Amps)
100 A
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
-
Current Ratio
2500:1
DC Resistance (DCR)
57Ohm
Ratings
-
Mounting Type
Through Hole
Size / Dimension
1.476" L x 0.551" W (37.50mm x 14.00mm)
Height - Seated (Max)
1.535" (39.00mm)
Termination Style
PC Pin
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
1
