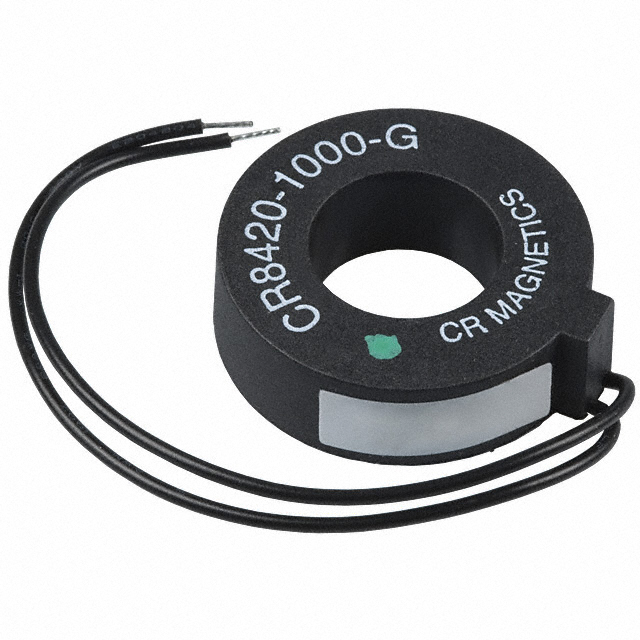

CR8420-1000-G CR Magnetics Inc.
Favorite
Compare
Manufacturer:
CR Magnetics Inc.
MFR Product Number:
CR8420-1000-G
Product Number:
CR8420-1000-G
MFR Standard Lead Time:
20 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 20A IN-LINE
Datasheet:
Descnt:
50 A Current Sense Transformer 20Hz ~ 1kHz 22Ohm Free Hanging (In-Line)
In Stock
6407
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
CR Magnetics Inc.
Series
CR8400
Packaging
Bulk
Part Status
Active
Frequency Range
20Hz ~ 1kHz
Type
Non-Invasive (Solid Core)
Current Rating (Amps)
50 A
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
-
Current Ratio
1000:1
DC Resistance (DCR)
22Ohm
Ratings
-
Mounting Type
Free Hanging (In-Line)
Size / Dimension
1.417" L x 1.181" W (36.00mm x 30.00mm)
Height - Seated (Max)
0.362" (9.20mm)
Termination Style
Wire Leads
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
1
