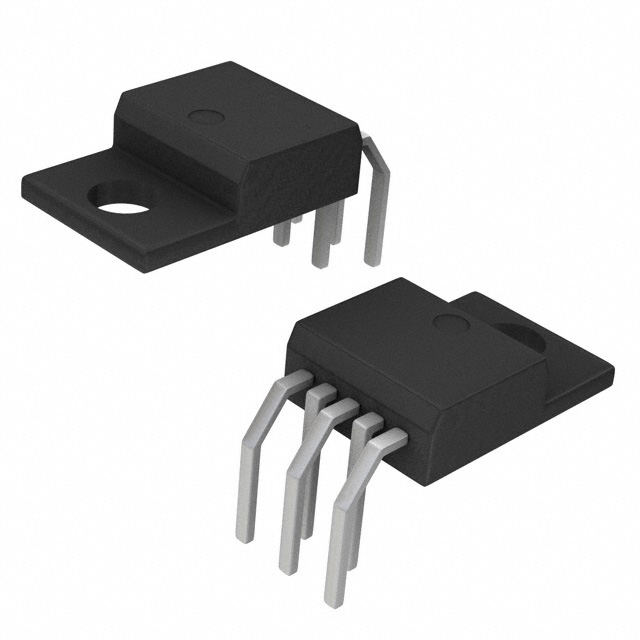

CS8147YTHA5 onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
CS8147YTHA5
Product Number:
CS8147YTHA5
MFR Standard Lead Time:
Package/Case:
TO-220-5 Formed Leads
Detailed Description:
IC REG LIN 10V/5V TO220-5
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Fixed 2 Output 500mA, 70mA TO-220-5 Horizontal
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
onsemi
Series
-
Packaging
Tube
Part Status
Obsolete
Output Configuration
Positive
Output Type
Fixed
Number of Regulators
2
Voltage - Input (Max)
26V
Voltage - Output (Min/Fixed)
10V, 5V
Voltage - Output (Max)
-
Voltage Dropout (Max)
0.7V 500mA, 2.5V 70mA
Current - Output
500mA, 70mA
Current - Quiescent (Iq)
7 mA
Current - Supply (Max)
120 mA
PSRR
-
Control Features
Enable
Protection Features
Over Temperature, Over Voltage, Reverse Polarity, Short Circuit
Operating Temperature
-40°C ~ 125°C
Mounting Type
Through Hole
Package / Case
TO-220-5 Formed Leads
Supplier Device Package
TO-220-5 Horizontal
Base Product Number
CS8147
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
50
