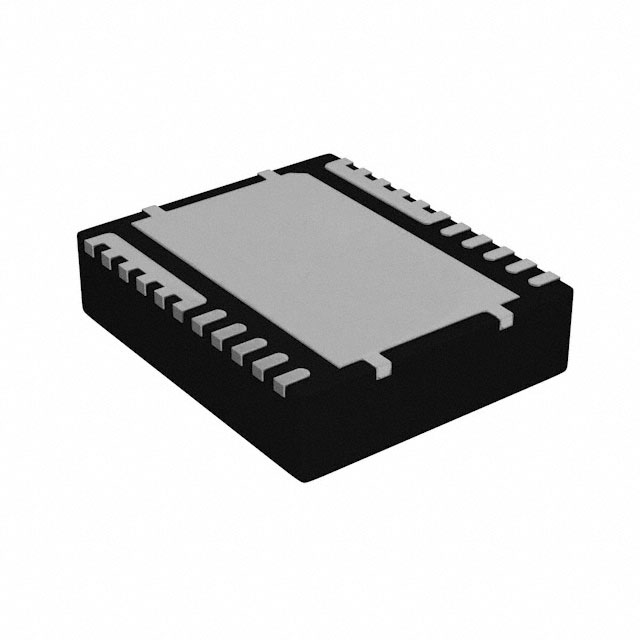

CSD43301Q5M Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
CSD43301Q5M
Product Number:
CSD43301Q5M
MFR Standard Lead Time:
18 Weeks
Package/Case:
12-PowerLFDFN
Detailed Description:
IC PWR DRIVER N-CHAN 1:1 12LSON
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 80A 12-LSON-CLIP (5x6)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
NexFET™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
Low Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
4.5V ~ 6V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
80A
Rds On (Typ)
0.55mOhm
Input Type
-
Features
-
Fault Protection
UVLO
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
12-LSON-CLIP (5x6)
Package / Case
12-PowerLFDFN
Base Product Number
CSD43301
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,500
