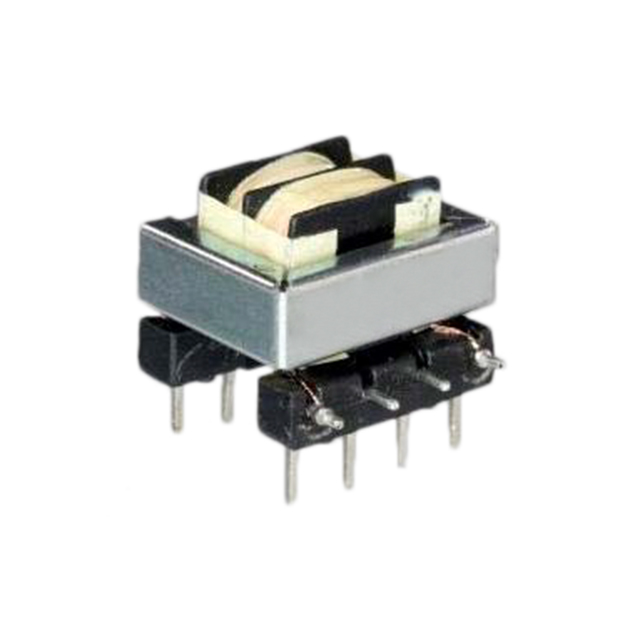

CSE185L Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
CSE185L
Product Number:
CSE185L
MFR Standard Lead Time:
23 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:50 3A T/H
Datasheet:
Descnt:
3 A 1:50 Current Sense Transformer 50Hz ~ 400Hz 19.5mOhm Primary, 23Ohm Secondary Through Hole
In Stock
295
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Triad Magnetics
Series
-
Packaging
Bulk
Part Status
Active
Frequency Range
50Hz ~ 400Hz
Type
Invasive
Current Rating (Amps)
3 A
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:50
Current Ratio
-
DC Resistance (DCR)
19.5mOhm Primary, 23Ohm Secondary
Ratings
-
Mounting Type
Through Hole
Size / Dimension
0.846" L x 0.945" W (21.50mm x 24.00mm)
Height - Seated (Max)
0.709" (18.00mm)
Termination Style
PC Pin
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
237-2083
Standard Package
1
