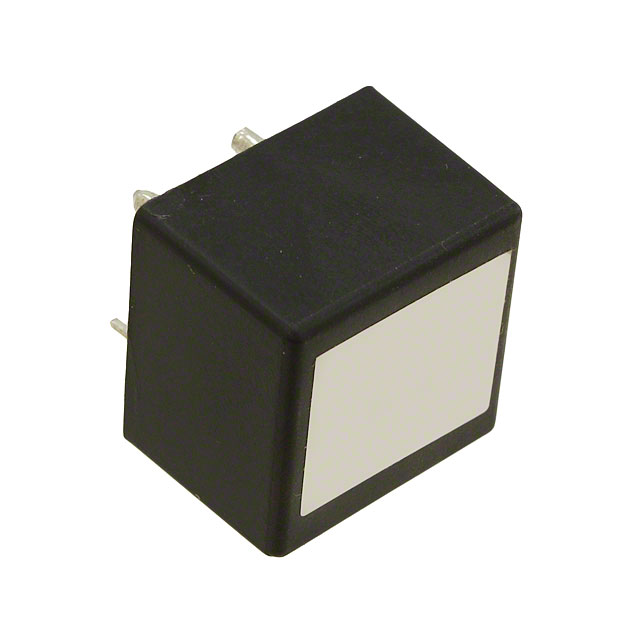

CSE187L-P-B Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
CSE187L-P-B
Product Number:
CSE187L-P-B
MFR Standard Lead Time:
21 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:500 30A T/H
Datasheet:
Descnt:
30 A 1:500 Current Sense Transformer 50Hz ~ 400Hz 3mOhm Primary, 21Ohm Secondary Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Triad Magnetics
Series
CSE
Packaging
Bulk
Part Status
Active
Frequency Range
50Hz ~ 400Hz
Type
Invasive
Current Rating (Amps)
30 A
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:500
Current Ratio
-
DC Resistance (DCR)
3mOhm Primary, 21Ohm Secondary
Ratings
-
Mounting Type
Through Hole
Size / Dimension
0.875" L x 0.875" W (22.23mm x 22.23mm)
Height - Seated (Max)
0.720" (18.29mm)
Termination Style
PC Pin
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
324
