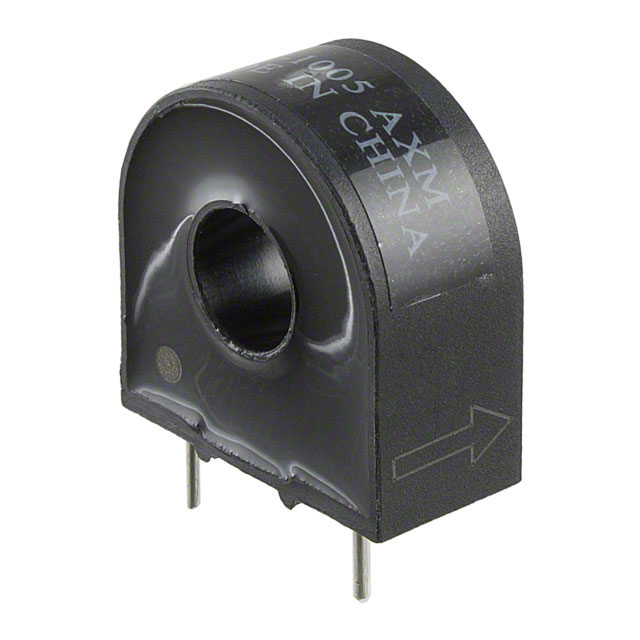

CST-1005 Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
CST-1005
Product Number:
CST-1005
MFR Standard Lead Time:
23 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 5A T/H
Datasheet:
Descnt:
5 A Current Sense Transformer 50/60Hz 40Ohm Through Hole
In Stock
2040
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Triad Magnetics
Series
CST
Packaging
Bulk
Part Status
Active
Frequency Range
50/60Hz
Type
Non-Invasive (Solid Core)
Current Rating (Amps)
5 A
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
-
Current Ratio
1000:1
DC Resistance (DCR)
40Ohm
Ratings
-
Mounting Type
Through Hole
Size / Dimension
0.925" L x 0.472" W (23.50mm x 12.00mm)
Height - Seated (Max)
0.976" (24.80mm)
Termination Style
PC Pin
Weight
0.044 lb (19.96 g)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
237-1623
Standard Package
1
