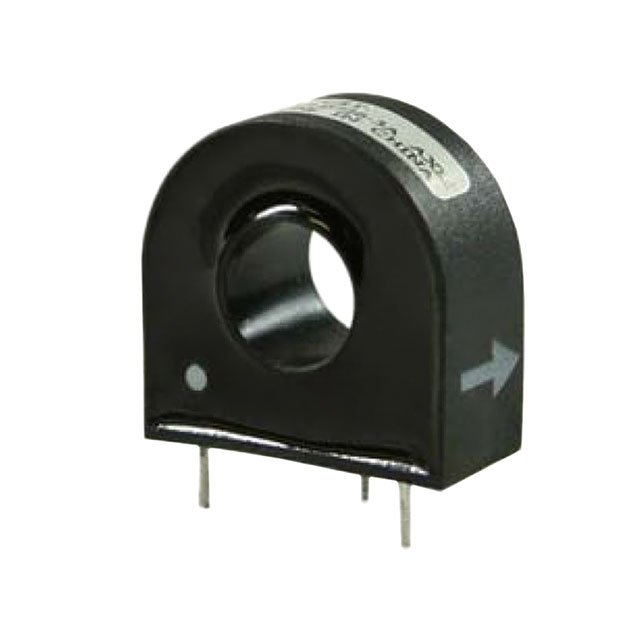

CST-1025-B Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
CST-1025-B
Product Number:
CST-1025-B
MFR Standard Lead Time:
21 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 25A T/H
Datasheet:
Descnt:
25 A Current Sense Transformer 50/60Hz 46Ohm Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Triad Magnetics
Series
CST
Packaging
Bulk
Part Status
Active
Frequency Range
50/60Hz
Type
Non-Invasive (Solid Core)
Current Rating (Amps)
25 A
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
-
Current Ratio
1000:1
DC Resistance (DCR)
46Ohm
Ratings
-
Mounting Type
Through Hole
Size / Dimension
1.189" L x 0.563" W (30.20mm x 14.30mm)
Height - Seated (Max)
1.189" (30.20mm)
Termination Style
PC Pin
Weight
0.066 lb (29.94 g)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Standard Package
70
-
