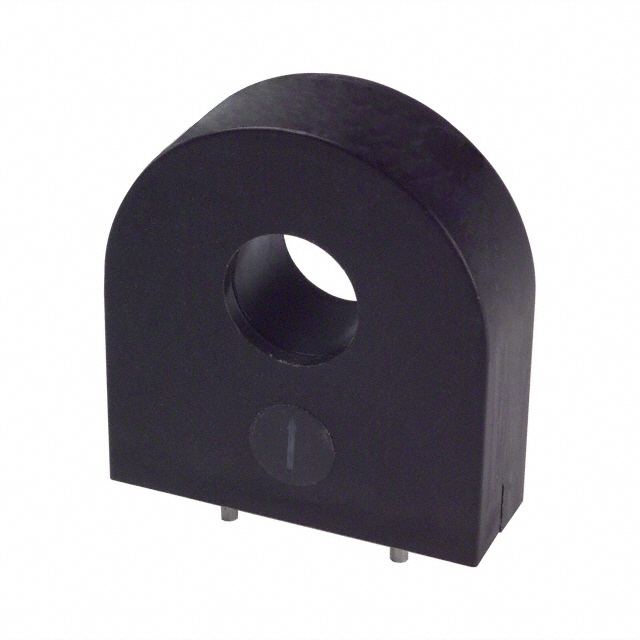

CST206-1A Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
CST206-1A
Product Number:
CST206-1A
MFR Standard Lead Time:
23 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 110A T/H
Datasheet:
Descnt:
110 A Current Sense Transformer 20kHz ~ 200kHz 580mOhm Max 14 mH Through Hole
In Stock
5575
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Triad Magnetics
Series
CST
Packaging
Bulk
Part Status
Active
Frequency Range
20kHz ~ 200kHz
Type
Non-Invasive (Solid Core)
Current Rating (Amps)
110 A
Inductance
14 mH
ET (Volt-Time)
2000VµS
Turns Ratio - Primary:Secondary
-
Current Ratio
100:1
DC Resistance (DCR)
580mOhm Max
Ratings
-
Mounting Type
Through Hole
Size / Dimension
1.075" L x 0.400" W (27.31mm x 10.16mm)
Height - Seated (Max)
1.225" (31.12mm)
Termination Style
PC Pin
Weight
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
1
