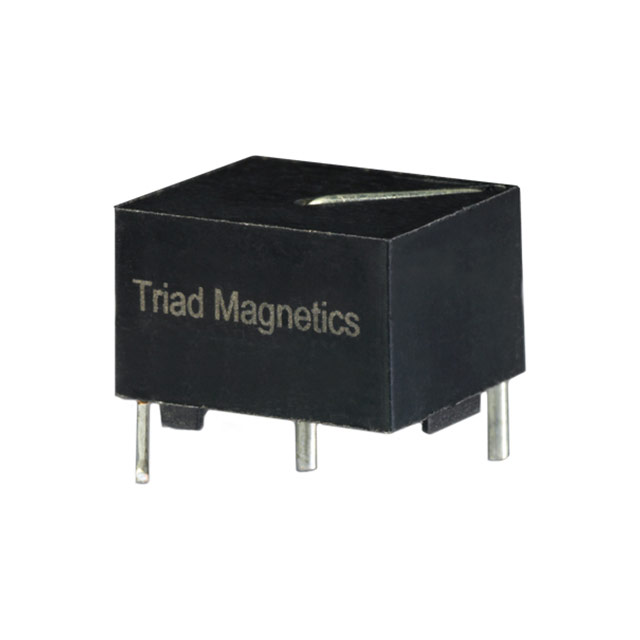

CST25-0050 Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
CST25-0050
Product Number:
CST25-0050
MFR Standard Lead Time:
23 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:50 500MA TH
Datasheet:
Descnt:
500 mA 1:50 Current Sense Transformer 50kHz ~ 500kHz 500mOhm 4.7 mH Through Hole
In Stock
118
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Triad Magnetics
Series
CST
Packaging
Bulk
Part Status
Active
Frequency Range
50kHz ~ 500kHz
Type
Invasive
Current Rating (Amps)
500 mA
Inductance
4.7 mH
ET (Volt-Time)
175VµS
Turns Ratio - Primary:Secondary
1:50
Current Ratio
-
DC Resistance (DCR)
500mOhm
Ratings
-
Mounting Type
Through Hole
Size / Dimension
0.669" L x 0.591" W (17.00mm x 15.00mm)
Height - Seated (Max)
0.472" (12.00mm)
Termination Style
PC Pin
Weight
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
237-2335
Standard Package
25
