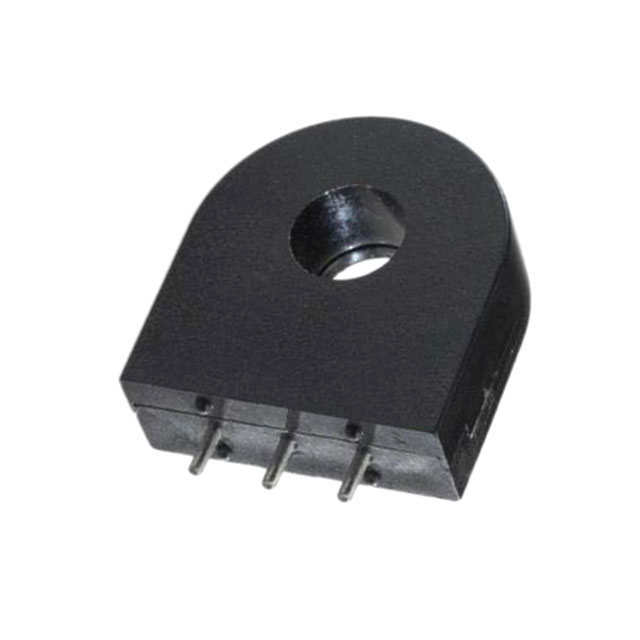

CST306-1T-B Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
CST306-1T-B
Product Number:
CST306-1T-B
MFR Standard Lead Time:
21 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 35A T/H
Datasheet:
Descnt:
35 A Current Sense Transformer 20kHz ~ 200kHz 340mOhm Max 3.5 mH Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Triad Magnetics
Series
CST
Packaging
Bulk
Part Status
Active
Frequency Range
20kHz ~ 200kHz
Type
Non-Invasive (Solid Core)
Current Rating (Amps)
35 A
Inductance
3.5 mH
ET (Volt-Time)
500VµS
Turns Ratio - Primary:Secondary
-
Current Ratio
50CT:1
DC Resistance (DCR)
340mOhm Max
Ratings
-
Mounting Type
Through Hole
Size / Dimension
0.690" L x 0.385" W (17.53mm x 9.78mm)
Height - Seated (Max)
0.915" (23.24mm)
Termination Style
PC Pin
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Standard Package
720
-
