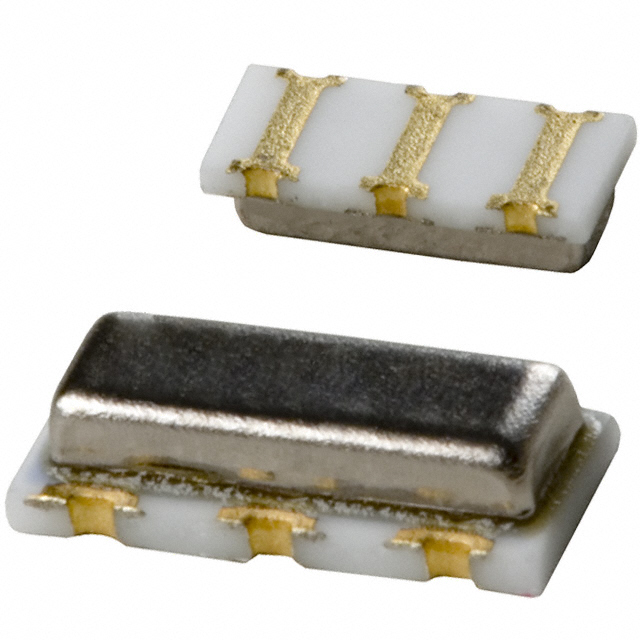

CSTNE20M0V53L000R0 Murata Electronics
Favorite
Compare
Manufacturer:
Murata Electronics
MFR Product Number:
CSTNE20M0V53L000R0
Product Number:
CSTNE20M0V53L000R0
MFR Standard Lead Time:
23 Weeks
Package/Case:
3-SMD, Non-Standard
Detailed Description:
3.2X1.3MM 20.0MHZ CERAMIC RESONA
Datasheet:
Descnt:
20 MHz Ceramic Resonator Built in Capacitor 15 pF ±0.2% 40 Ohms -40°C ~ 85°C Surface Mount
In Stock
2997
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Product Attributes
Manufacturer
Murata Electronics
Series
CERALOCK® CSTNE
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Ceramic
Frequency
20 MHz
Frequency Stability
±0.2%
Frequency Tolerance
±0.5%
Features
Built in Capacitor
Capacitance
15 pF
Impedance
40 Ohms
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
3-SMD, Non-Standard
Size / Dimension
0.126" L x 0.051" W (3.20mm x 1.30mm)
Height
0.039" (1.00mm)
Base Product Number
CSTNE
-
Documents & Media
Datasheets
Video File
The Role of Oscillation Circuit Components
The Measurement Process for the Oscillation Margin
The Measurement Process for the Drive Level
The Oscillation Characteristics & Circuit Constants
The Oscillation Frequency Measurement
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.60.0080
-
Additional Resources
Other Names
Standard Package
3,000
