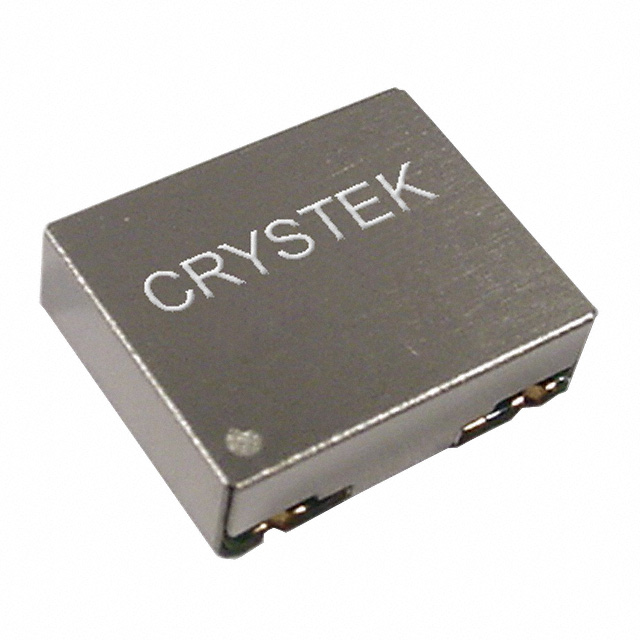

CVCO45CL-0100-0140 Crystek Corporation
Favorite
Compare
Manufacturer:
Crystek Corporation
MFR Product Number:
CVCO45CL-0100-0140
Product Number:
CVCO45CL-0100-0140
MFR Standard Lead Time:
9 Weeks
Package/Case:
6-SMD, No Lead
Detailed Description:
VCO 120MHZ 0-5V 12.7MMX10.16MM
Datasheet:
Descnt:
120MHz Center Frequency 0 V ~ 5 V Voltage Controlled Oscillator 3 ±3 dBm -15 2nd Harmonic Typ (dBc)
In Stock
32
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Crystek Corporation
Series
CVCO45
Packaging
Strip
Part Status
Active
Frequency Range
100 ~ 140MHz
Frequency - Center
120MHz
Voltage - Supply
3V
Tuning Voltage (VDC)
0 V ~ 5 V
2nd Harmonic, Typ (dBc)
-15
Icc Max
15mA
Pushing (MHz/V)
2 (Typ)
Power (dBm)
3 ±3
Phase Noise Typ (dBc/Hz)
-110
Operating Temperature
-40°C ~ 85°C
Package / Case
6-SMD, No Lead
Size / Dimension
0.500" L x 0.400" W (12.70mm x 10.16mm)
Height
0.165" (4.20mm)
-
Documents & Media
HTML Datasheet
CVCO45CL-0100-0140
VCO Selector Guide
Product Drawings
CVCO45CL Series Top
CVCO45CL Series Side
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
25
