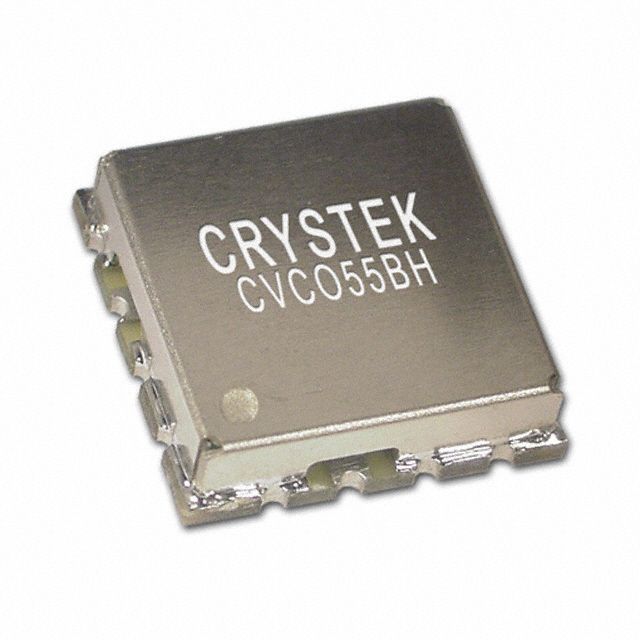

CVCO55BH-5450-5550 Crystek Corporation
Favorite
Compare
Manufacturer:
Crystek Corporation
MFR Product Number:
CVCO55BH-5450-5550
Product Number:
CVCO55BH-5450-5550
MFR Standard Lead Time:
9 Weeks
Package/Case:
16-QFN, Variant
Detailed Description:
VCO 5500MHZ 0.5-4.5V 12.7X12.7MM
Datasheet:
Descnt:
5500MHz Center Frequency 0.5 V ~ 4.5 V Voltage Controlled Oscillator -2 ±3 dBm -10 2nd Harmonic Typ (dBc)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Crystek Corporation
Series
CVCO55
Packaging
Strip
Part Status
Active
Frequency Range
5450 ~ 5550MHz
Frequency - Center
5500MHz
Voltage - Supply
5V
Tuning Voltage (VDC)
0.5 V ~ 4.5 V
2nd Harmonic, Typ (dBc)
-10
Icc Max
30mA
Pushing (MHz/V)
6
Power (dBm)
-2 ±3
Phase Noise Typ (dBc/Hz)
-85
Operating Temperature
-40°C ~ 85°C
Package / Case
16-QFN, Variant
Size / Dimension
0.500" L x 0.500" W (12.70mm x 12.70mm)
Height
0.150" (3.81mm)
-
Documents & Media
HTML Datasheet
CVCO55BH-5450-5550
VCO Selector Guide
Product Drawings
CVCO55xx Series Top
CVCO55xx Series Side
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
744-1212
Standard Package
5
