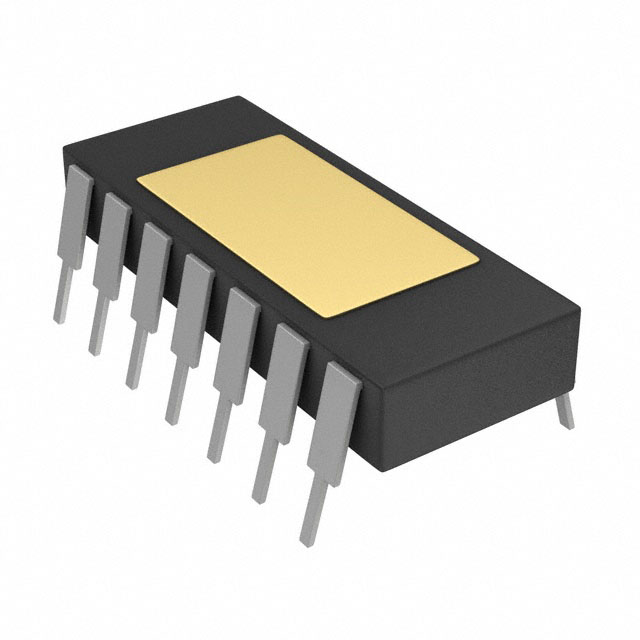

DAC811BH Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
DAC811BH
Product Number:
DAC811BH
MFR Standard Lead Time:
Package/Case:
28-CDIP (0.600\, 15.24mm) Window
Detailed Description:
IC DAC 12BIT V-OUT 28CDIP
Datasheet:
Descnt:
12 Bit Digital to Analog Converter 1 28-CDIP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Texas Instruments
Series
-
Packaging
Tube
Part Status
Last Time Buy
DigiKey Programmable
Not Verified
Number of Bits
12
Number of D/A Converters
1
Settling Time
4µs
Output Type
Voltage - Buffered
Differential Output
No
Data Interface
Parallel
Reference Type
Internal
Voltage - Supply, Analog
±11.4V ~ 16.5V
Voltage - Supply, Digital
5V
INL/DNL (LSB)
±0.125, ±0.25
Architecture
R-2R
Operating Temperature
-25°C ~ 85°C
Package / Case
28-CDIP (0.600", 15.24mm) Window
Supplier Device Package
28-CDIP
Mounting Type
Through Hole
Base Product Number
DAC811
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
12
