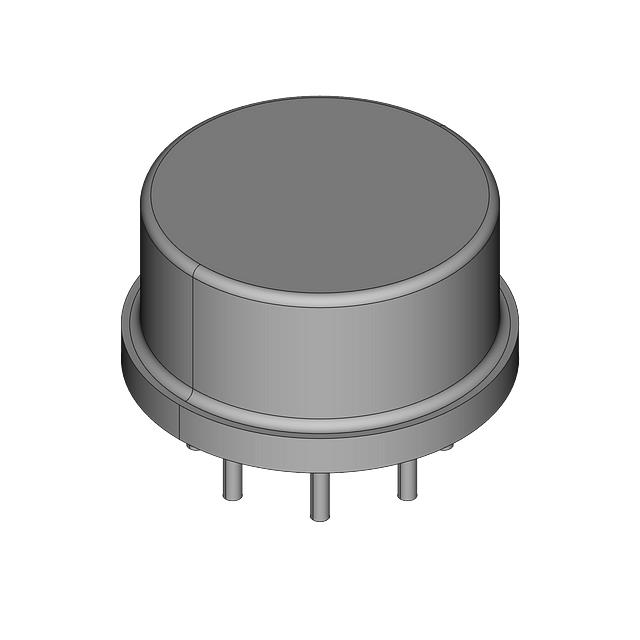

DG301AAA Rochester Electronics, LLC
Favorite
Compare
Manufacturer:
Rochester Electronics, LLC
MFR Product Number:
DG301AAA
Product Number:
DG301AAA
MFR Standard Lead Time:
Package/Case:
TO-100-10 Metal Can
Detailed Description:
CMOS Analog Switch
Datasheet:
Descnt:
1 Circuit IC Switch 2:1 50Ohm TO-100-10
In Stock
545
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Rochester Electronics, LLC
Series
DG300A_MIL
Packaging
Bulk
Part Status
Active
Switch Circuit
SPDT - Open/Closed
Multiplexer/Demultiplexer Circuit
2:1
Number of Circuits
1
On-State Resistance (Max)
50Ohm
Channel-to-Channel Matching (ΔRon)
-
Voltage - Supply, Single (V+)
-
Voltage - Supply, Dual (V±)
±5V ~ 18V
Switch Time (Ton, Toff) (Max)
300ns, 250ns
-3db Bandwidth
-
Charge Injection
12pC
Channel Capacitance (CS(off), CD(off))
14pF, 14pF
Current - Leakage (IS(off)) (Max)
1nA
Crosstalk
-74dB 500kHz
Operating Temperature
-55°C ~ 125°C (TA)
Grade
-
Qualification
-
Mounting Type
Through Hole
Package / Case
TO-100-10 Metal Can
Supplier Device Package
TO-100-10
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
-
Additional Resources
Other Names
2156-DG301AAA
Standard Package
4
