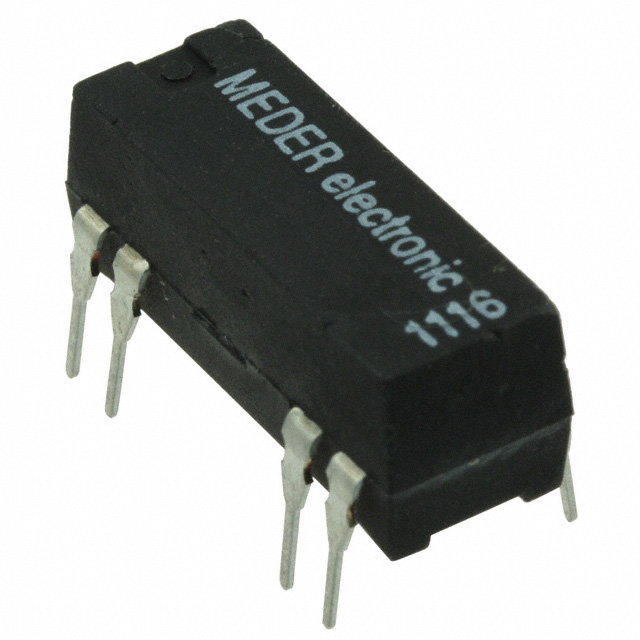

DIP12-1C90-51D Standex-Meder Electronics
Favorite
Compare
Manufacturer:
Standex-Meder Electronics
MFR Product Number:
DIP12-1C90-51D
Product Number:
DIP12-1C90-51D
MFR Standard Lead Time:
14 Weeks
Package/Case:
Detailed Description:
RELAY REED SPDT 500MA 12V
Datasheet:
Descnt:
In Stock
464
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Standex-Meder Electronics
Series
DIP
Packaging
Tube
Part Status
Active
Mounting Type
Through Hole
Coil Voltage
12VDC
Contact Form
SPDT (1 Form C)
Contact Rating (Current)
500 mA
Switching Voltage
175VAC, 175VDC - Max
Coil Current
24 mA
Coil Type
Non Latching
Features
Diode
Termination Style
PC Pin
Seal Rating
-
Must Operate Voltage
8.4 VDC
Must Release Voltage
1.8 VDC
Operate Time
0.7 ms
Release Time
1.5 ms
Operating Temperature
-20°C ~ 70°C
Contact Material
-
Coil Resistance
500 Ohms
-
Documents & Media
Datasheets
DIP Series Datasheet
DIP12-1C90-51D Spec Sheet
Product Training Modules
Reed Relay Overview
RF Reed Relays Presentation – Part 1
RF Reed Relays Presentation-Part 2
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8536.41.0030
-
Additional Resources
Other Names
Standard Package
25
