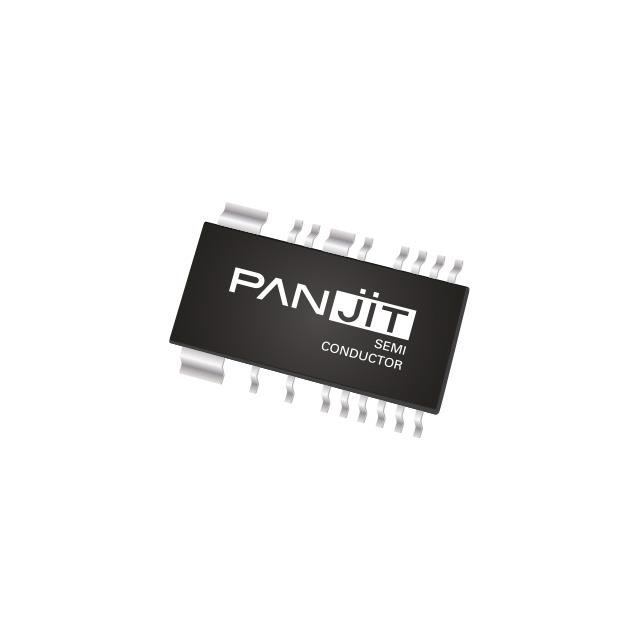

DRFLYBACK-A_R2_00301 Panjit International Inc.
Favorite
Compare
Manufacturer:
Panjit International Inc.
MFR Product Number:
DRFLYBACK-A_R2_00301
Product Number:
DRFLYBACK-A-R2-00301
MFR Standard Lead Time:
6 Weeks
Package/Case:
14-TSSOP (0.173\, 4.40mm Width)
Detailed Description:
DR. FLYBACK,TSSOP-18,BRIDGE CONT
Datasheet:
Descnt:
Converter Offline Flyback, Secondary Side SR Topology 89kHz 18-TSSOP
In Stock
2500
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Panjit International Inc.
Series
Dr. Flyback™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Isolation
Isolated
Internal Switch(s)
No
Voltage - Breakdown
650V
Topology
Flyback, Secondary Side SR
Voltage - Start Up
20 V
Voltage - Supply (Vcc/Vdd)
7V ~ 27.5V
Duty Cycle
-
Frequency - Switching
89kHz
Power (Watts)
150 W
Fault Protection
Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage, UVLO
Control Features
-
Operating Temperature
-40°C ~ 125°C
Package / Case
14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package
18-TSSOP
Mounting Type
Surface Mount
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
2,500
