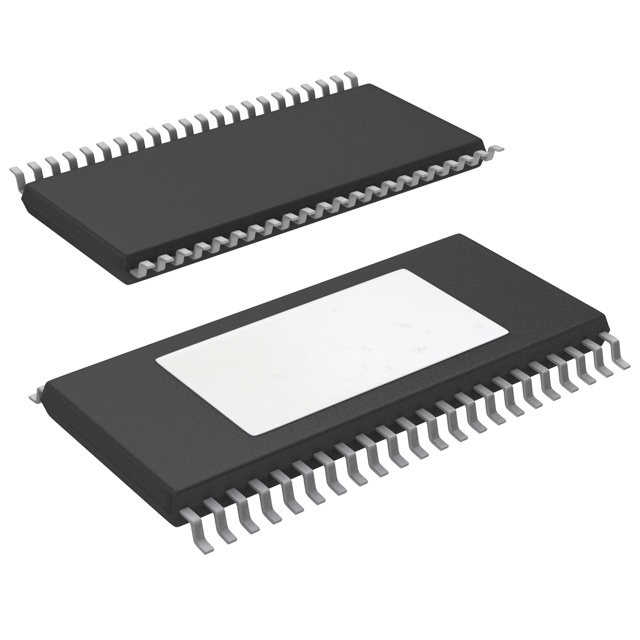

DRV8332HDDV Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
DRV8332HDDV
Product Number:
DRV8332HDDV
MFR Standard Lead Time:
Package/Case:
44-PowerTSSOP (0.244\, 6.20mm Width)
Detailed Description:
IC HALF BRIDGE DRVR 5A 44HTSSOP
Datasheet:
Descnt:
Half Bridge (3) Driver DC Motors, General Purpose Power MOSFET 44-HTSSOP
In Stock
35
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Texas Instruments
Series
-
Packaging
Tube
Part Status
Active
Output Configuration
Half Bridge (3)
Applications
DC Motors, General Purpose
Interface
PWM
Load Type
Inductive
Technology
Power MOSFET
Rds On (Typ)
260mOhm LS, 260mOhm HS
Current - Output / Channel
5A
Current - Peak Output
7A
Voltage - Supply
10.8V ~ 13.2V
Voltage - Load
0V ~ 52.5V
Operating Temperature
-55°C ~ 175°C (TJ)
Features
Bootstrap Circuit, Status Flag
Fault Protection
Current Limiting, Over Temperature, Short Circuit, UVLO
Mounting Type
Surface Mount
Package / Case
44-PowerTSSOP (0.244", 6.20mm Width)
Supplier Device Package
44-HTSSOP
Base Product Number
DRV8332
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
35
