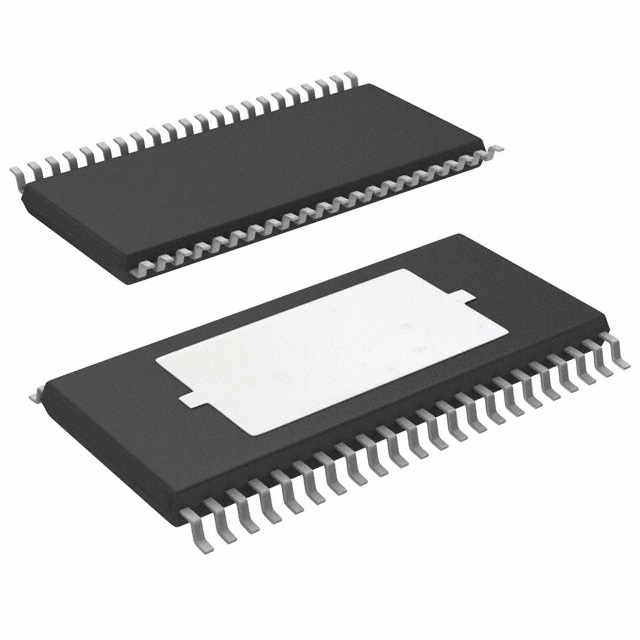

DRV8412DDW Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
DRV8412DDW
Product Number:
DRV8412DDW
MFR Standard Lead Time:
Package/Case:
44-PowerTSSOP (0.244\, 6.20mm Width)
Detailed Description:
IC HALF BRIDGE DRVR 3A 44HTSSOP
Datasheet:
Descnt:
Half Bridge (4) Driver DC Motors, Stepper Motors Power MOSFET 44-HTSSOP
In Stock
5423
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Texas Instruments
Series
-
Packaging
Tube
Part Status
Last Time Buy
Output Configuration
Half Bridge (4)
Applications
DC Motors, Stepper Motors
Interface
PWM
Load Type
Inductive
Technology
Power MOSFET
Rds On (Typ)
110mOhm LS, 110mOhm HS
Current - Output / Channel
3A
Current - Peak Output
6A
Voltage - Supply
10.8V ~ 13.2V
Voltage - Load
0V ~ 52.5V
Operating Temperature
-40°C ~ 150°C (TJ)
Features
Status Flag
Fault Protection
Current Limiting, Over Temperature, Short Circuit, UVLO
Mounting Type
Surface Mount
Package / Case
44-PowerTSSOP (0.244", 6.20mm Width)
Supplier Device Package
44-HTSSOP
Base Product Number
DRV8412
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
35
