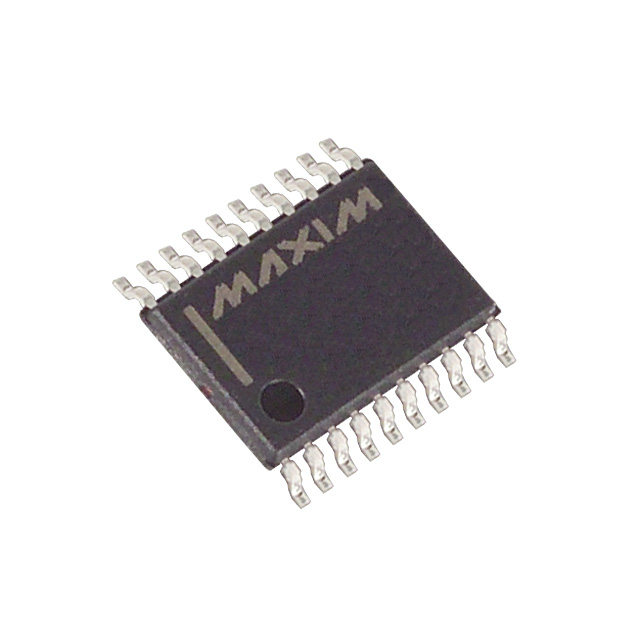

DS1306EN/T&R Analog Devices Inc./Maxim Integrated
Favorite
Compare
Manufacturer:
Analog Devices Inc./Maxim Integrated
MFR Product Number:
DS1306EN/T&R
Product Number:
DS1306EN-T-R
MFR Standard Lead Time:
Package/Case:
20-TSSOP (0.173\, 4.40mm Width)
Detailed Description:
IC RTC CLK/CALENDAR SPI 20TSSOP
Datasheet:
Descnt:
Real Time Clock (RTC) IC Clock/Calendar 96B SPI 20-TSSOP (0.173", 4.40mm Width)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Analog Devices Inc./Maxim Integrated
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
DigiKey Programmable
Not Verified
Type
Clock/Calendar
Features
Alarm, Leap Year, NVSRAM, Square Wave Output, Trickle-Charger
Memory Size
96B
Time Format
HH:MM:SS (12/24 hr)
Date Format
YY-MM-DD-dd
Interface
SPI
Voltage - Supply
2V ~ 5.5V
Voltage - Supply, Battery
2V ~ 5.5V
Current - Timekeeping (Max)
25.3µA ~ 81µA 2V ~ 5V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package
20-TSSOP
Base Product Number
DS1306
-
Documents & Media
Datasheets
Mfg Application Notes
Selecting a Backup Source for Real-Time Clocks
Using the Dallas Tricklecharge Timekeeper
Crystal Considerations with Maxim Real-Time Clocks (RTCs)
Environmental Information
Maxim Integrated RoHS Cert
Maxim Integrated REACH
-
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Standard Package
2,500
-
