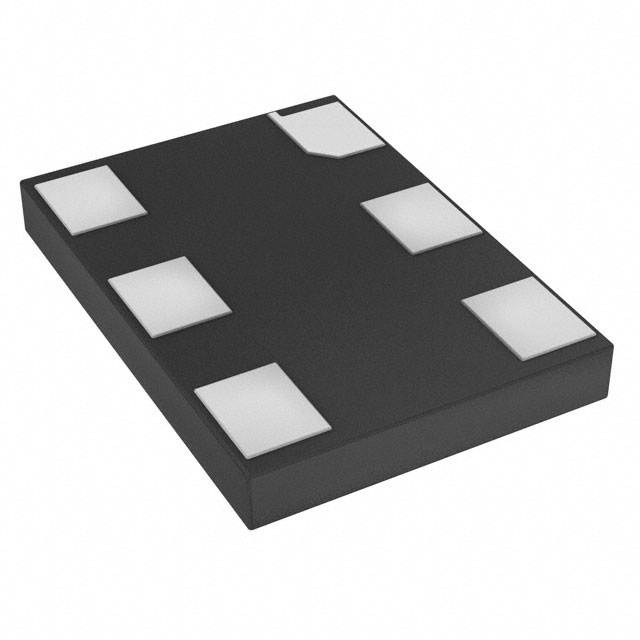

DSC1101NM2-PROG Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
DSC1101NM2-PROG
Product Number:
DSC1101NM2-PROG
MFR Standard Lead Time:
Package/Case:
6-SMD, No Lead
Detailed Description:
LOW JITTER PROGRAMMABLE MEMS CMO
Datasheet:
Descnt:
XO (Standard) CMOS 3.3 MHz ~ 170 MHz Programmable Oscillator 2.25V ~ 3.6V Standby (Power Down) 6-SMD, No Lead
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Microchip Technology
Series
DSC1101
Packaging
Tube
Part Status
Active
Base Resonator
MEMS
Type
XO (Standard)
Programmable Type
Blank (User Must Program)
Available Frequency Range
3.3 MHz ~ 170 MHz
Function
Standby (Power Down)
Output
CMOS
Voltage - Supply
2.25V ~ 3.6V
Frequency Stability
±25ppm
Frequency Stability (Total)
-
Operating Temperature
-55°C ~ 125°C
Spread Spectrum Bandwidth
-
Current - Supply (Max)
35mA
Ratings
-
Mounting Type
Surface Mount
Package / Case
6-SMD, No Lead
Size / Dimension
0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)
0.035" (0.90mm)
Base Product Number
DSC1101
Documents & Media
Environmental Information
Microchip RoHS
Microchip REACH
Microchip CA Prop65
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
150-DSC1101NM2-PROG
Standard Package
50
