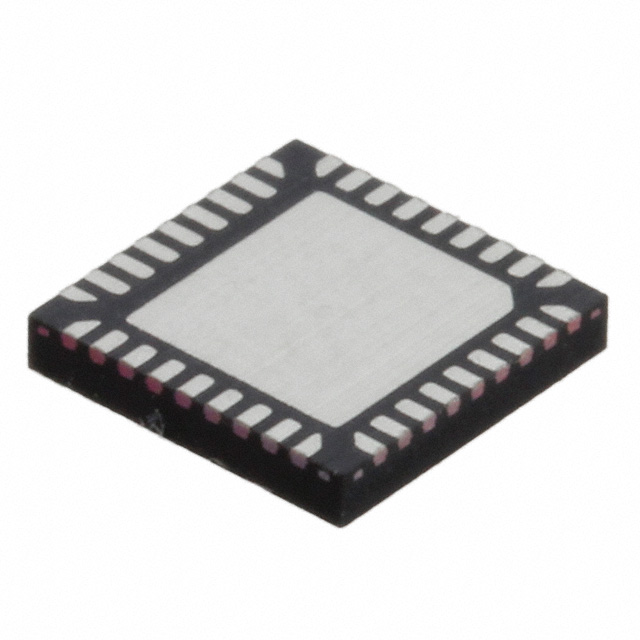

EC2630QI Intel
Favorite
Compare
Manufacturer:
Intel
MFR Product Number:
EC2630QI
Product Number:
EC2630QI
MFR Standard Lead Time:
Package/Case:
36-VFQFN Exposed Pad
Detailed Description:
IC REG CHARGE PUMP 2VIN 36QFN
Datasheet:
Descnt:
Charge Pump Switching Regulator IC Positive Fixed Vin/2 1 Output 4.5A 36-VFQFN Exposed Pad
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Intel
Series
Enpirion®
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Function
Ratiometric
Output Configuration
Positive
Topology
Charge Pump
Output Type
Fixed
Number of Outputs
1
Voltage - Input (Min)
8V
Voltage - Input (Max)
13.2V
Voltage - Output (Min/Fixed)
Vin/2
Voltage - Output (Max)
-
Current - Output
4.5A
Frequency - Switching
115kHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
36-VFQFN Exposed Pad
Supplier Device Package
36-QFN (5x6)
Base Product Number
EC2630
-
Documents & Media
Datasheets
PCN Obsolescence/ EOL
Multi Dev obs 15/Jul/2022
Mult Dev EOL 17/Sep/2021
Mult Dev EOL Update 27/Jan/2022
PCN Packaging
Mult Dev Label CHG 24/Jan/2020
Mult Dev Label Chgs 24/Feb/2020
-
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
1,000
