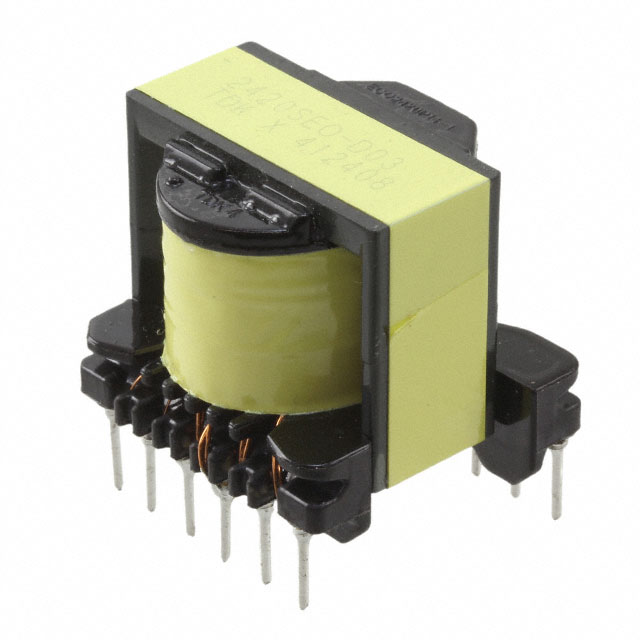

ECO2420SEO-D03V018 TDK Corporation
Favorite
Compare
Manufacturer:
TDK Corporation
MFR Product Number:
ECO2420SEO-D03V018
Product Number:
ECO2420SEO-D03V018
MFR Standard Lead Time:
15 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK AC/DC CONV 750UH TH
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer 3000Vrms Isolation 60kHz Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
TDK Corporation
Series
ECO
Packaging
Bulk
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
169 ~ 312V
Voltage - Auxiliary
5V 200mA, 12V 2.5A
Voltage - Isolation
3000Vrms
Inductance Frequency
750µH 100kHz
Frequency
60kHz
Operating Temperature
-30°C ~ 120°C
Mounting Type
Through Hole
Size / Dimension
1.240" L x 0.984" W (31.50mm x 25.00mm)
Height - Seated (Max)
1.043" (26.50mm)
Footprint
1.240" L x 0.984" W (31.50mm x 25.00mm)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8504.31.2000
Additional Resources
Other Names
445-16080
Standard Package
120
