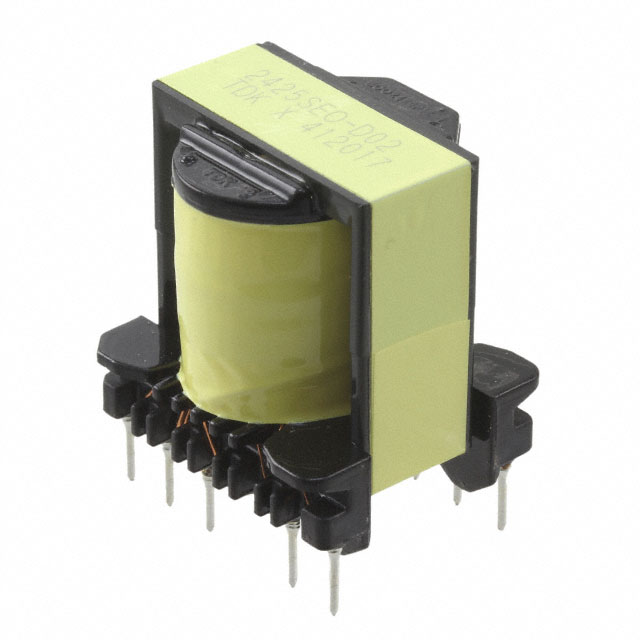

ECO2425SEO-D02V016 TDK Corporation
Favorite
Compare
Manufacturer:
TDK Corporation
MFR Product Number:
ECO2425SEO-D02V016
Product Number:
ECO2425SEO-D02V016
MFR Standard Lead Time:
15 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK AC/DC CONV 700UH TH
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer 3000Vrms Isolation Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
TDK Corporation
Series
ECO
Packaging
Bulk
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
96 ~ 276V
Voltage - Auxiliary
3.3V 700mA, 18V 500mA, 20V 200mA
Voltage - Isolation
3000Vrms
Inductance Frequency
700µH 10kHz
Frequency
-
Operating Temperature
-30°C ~ 120°C
Mounting Type
Through Hole
Size / Dimension
1.122" L x 0.945" W (28.50mm x 24.00mm)
Height - Seated (Max)
1.240" (31.50mm)
Footprint
1.122" L x 0.945" W (28.50mm x 24.00mm)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8504.31.2000
Additional Resources
Other Names
445-16083
Standard Package
150
