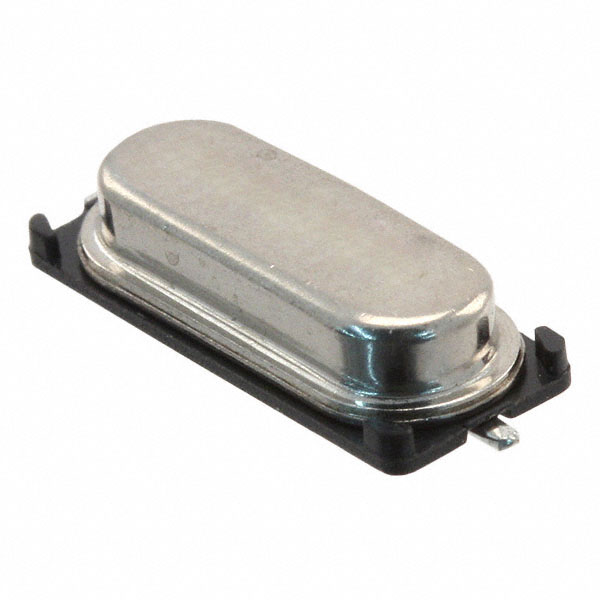

ECS-143-20-5PVX ECS Inc.
Favorite
Compare
Manufacturer:
ECS Inc.
MFR Product Number:
ECS-143-20-5PVX
Product Number:
ECS-143-20-5PVX
MFR Standard Lead Time:
19 Weeks
Package/Case:
HC-49/US
Detailed Description:
CRYSTAL 14.31818MHZ 20PF SMD
Datasheet:
Descnt:
14.31818 MHz ±30ppm Crystal 20pF 50 Ohms HC-49/US
In Stock
2126
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
ECS Inc.
Series
CSM-7SSX
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
MHz Crystal
Frequency
14.31818 MHz
Frequency Stability
±50ppm
Frequency Tolerance
±30ppm
Load Capacitance
20pF
ESR (Equivalent Series Resistance)
50 Ohms
Operating Mode
Fundamental
Operating Temperature
-10°C ~ 70°C
Ratings
-
Mounting Type
Surface Mount
Package / Case
HC-49/US
Size / Dimension
0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Max)
0.102" (2.60mm)
-
Documents & Media
Datasheets
CSM-7SSX (5PVX) Series
Crystal Part Numbering Guide
Part Numbering Guide
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.60.0050
-
Additional Resources
Other Names
Standard Package
1,000
