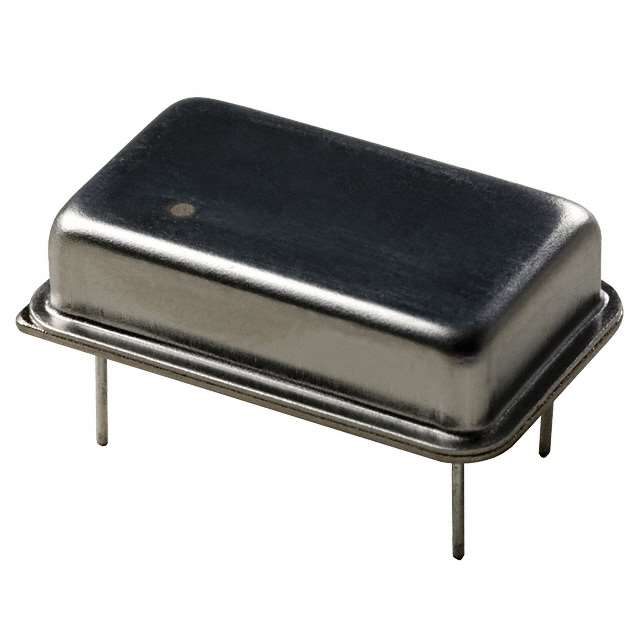

ECS-P145-AX ECS Inc.
Favorite
Compare
Manufacturer:
ECS Inc.
MFR Product Number:
ECS-P145-AX
Product Number:
ECS-P145-AX
MFR Standard Lead Time:
Package/Case:
14-DIP, 4 Leads (Full Size, Metal Can)
Detailed Description:
XTAL OSC PROG XO HCMOS 5V 100PPM
Datasheet:
Descnt:
XO (Standard) HCMOS 1 MHz ~ 150 MHz Programmable Oscillator 5V Enable/Disable 14-DIP, 4 Leads (Full Size, Metal Can)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
ECS Inc.
Series
ECS-P145X
Packaging
Tube
Part Status
Active
Base Resonator
Crystal
Type
XO (Standard)
Programmable Type
Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Available Frequency Range
1 MHz ~ 150 MHz
Function
Enable/Disable
Output
HCMOS
Voltage - Supply
5V
Frequency Stability
-
Frequency Stability (Total)
±100ppm
Operating Temperature
0°C ~ 70°C
Spread Spectrum Bandwidth
-
Current - Supply (Max)
45mA
Ratings
-
Mounting Type
Through Hole
Package / Case
14-DIP, 4 Leads (Full Size, Metal Can)
Size / Dimension
0.815" L x 0.508" W (20.70mm x 12.90mm)
Height - Seated (Max)
0.197" (5.00mm)
-
Documents & Media
Datasheets
Product Drawings
ECS-UPO-14PIN(X) Top
ECS-UPO-14PIN(X) Bottom
ECS-UPO-14PIN(X) Side
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Standard Package
1
-
