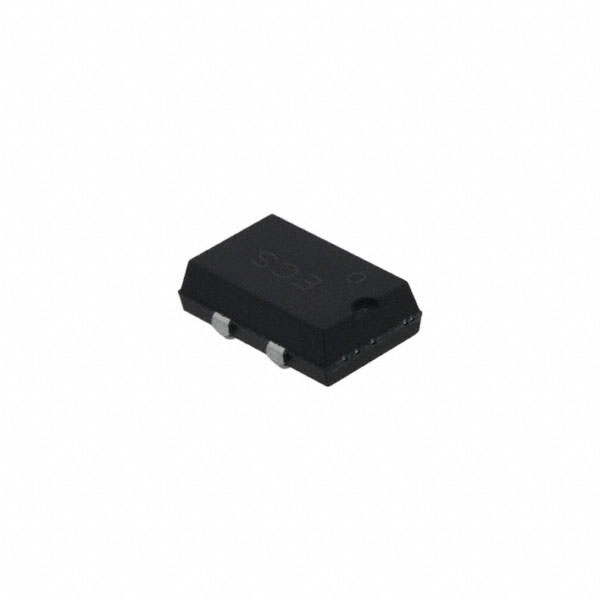

ECS-P8F5-A ECS Inc.
Favorite
Compare
Manufacturer:
ECS Inc.
MFR Product Number:
ECS-P8F5-A
Product Number:
ECS-P8F5-A
MFR Standard Lead Time:
Package/Case:
4-SOJ, 5.08mm pitch
Detailed Description:
XTAL OSC PROG XO HCMOS 5V 100PPM
Datasheet:
Descnt:
XO (Standard) HCMOS 1 MHz ~ 150 MHz Programmable Oscillator 5V Enable/Disable 4-SOJ, 5.08mm pitch
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
ECS Inc.
Series
ECS-P8F5X
Packaging
Tube
Part Status
Obsolete
Base Resonator
Crystal
Type
XO (Standard)
Programmable Type
Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Available Frequency Range
1 MHz ~ 150 MHz
Function
Enable/Disable
Output
HCMOS
Voltage - Supply
5V
Frequency Stability
-
Frequency Stability (Total)
±100ppm
Operating Temperature
-10°C ~ 70°C
Spread Spectrum Bandwidth
-
Current - Supply (Max)
45mA
Ratings
-
Mounting Type
Surface Mount
Package / Case
4-SOJ, 5.08mm pitch
Size / Dimension
0.551" L x 0.341" W (14.00mm x 8.65mm)
Height - Seated (Max)
0.185" (4.70mm)
-
Documents & Media
Datasheets
Product Drawings
ECS-UPO-8FX Top
ECS-UPO-8FX Side 2
ECS-UPO-8FX Bottom
ECS-UPO-8FX Side 1
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Standard Package
1,000
-
