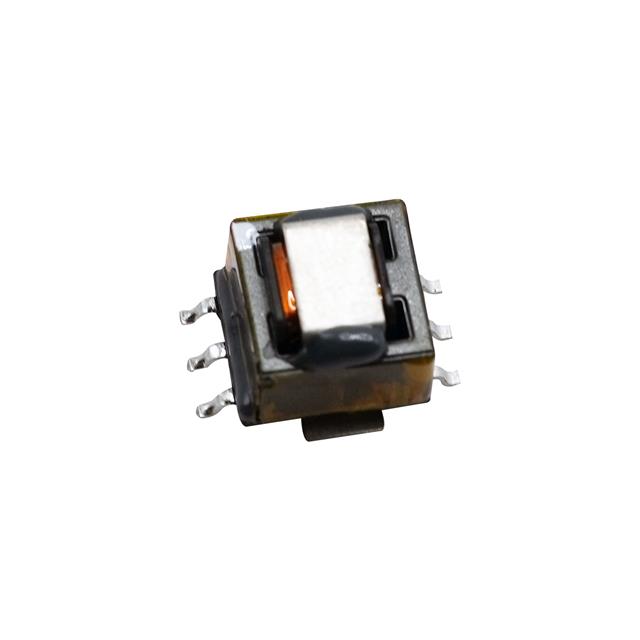

ECST1V1308-1040-R Eaton - Electronics Division
Favorite
Compare
Manufacturer:
Eaton - Electronics Division
MFR Product Number:
ECST1V1308-1040-R
Product Number:
ECST1V1308-1040-R
MFR Standard Lead Time:
13 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 40:1 15A SMD
Datasheet:
Descnt:
15 A 40:1 Current Sense Transformer 50kHz ~ 1MHz 3.9mOhm Primary, 500mOhm Secondary Max 880 µH Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Eaton - Electronics Division
Series
ECST
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Frequency Range
50kHz ~ 1MHz
Type
Invasive
Current Rating (Amps)
15 A
Inductance
880 µH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
40:1
Current Ratio
-
DC Resistance (DCR)
3.9mOhm Primary, 500mOhm Secondary Max
Ratings
-
Mounting Type
Surface Mount
Size / Dimension
0.512" L x 0.433" W (13.00mm x 11.00mm)
Height - Seated (Max)
0.307" (7.80mm)
Termination Style
Gull Wing
Weight
-
Documents & Media
Datasheets
ECST1V1308 Datasheet
ECST Application Brochure
ECST Product Aid
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8504.31.2000
Additional Resources
Other Names
Standard Package
350
