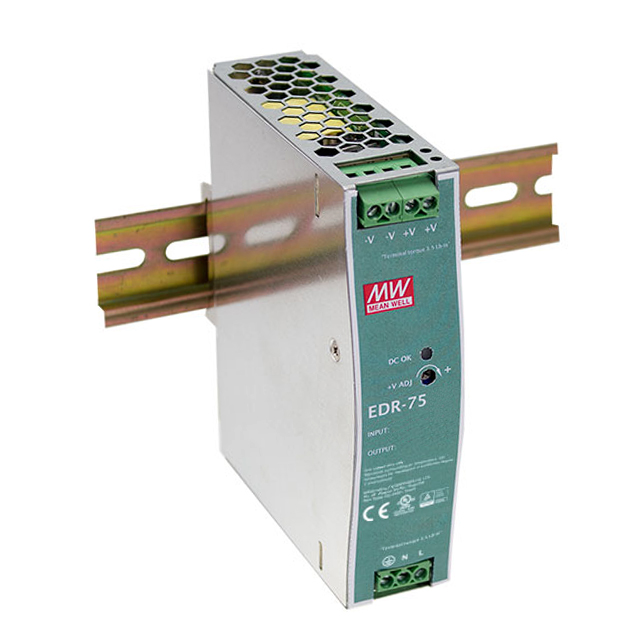

EDR-75-24 MEAN WELL USA Inc.
Favorite
Compare
Manufacturer:
MEAN WELL USA Inc.
MFR Product Number:
EDR-75-24
Product Number:
EDR-75-24
MFR Standard Lead Time:
12 Weeks
Package/Case:
Detailed Description:
AC/DC DIN RAIL SUPPLY 24V 77W
Datasheet:
Descnt:
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
MEAN WELL USA Inc.
Series
EDR-75 (75W)
Packaging
Box
Part Status
Active
Input Type
AC or DC
Number of Outputs
1
AC Voltage - Input
90 ~ 264 VAC
DC Voltage - Input (Min)
127V
DC Voltage - Input (Max)
370V
Voltage - Output 1
24V
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Voltage - Output 5
-
Voltage - Output 6
-
Current - Output (Max)
3.2A
Power (Watts)
77W
Voltage - Isolation
3 kV
Applications
Industrial, ITE (Commercial)
Efficiency
87.5%
Operating Temperature
-20°C ~ 60°C (With Derating)
Features
Adjustable Output, Universal Input
Size / Dimension
4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm)
Approval Agency
CB, CE, cULus, RCM, TUV
Minimum Load Required
No
Base Product Number
EDR-75
Documents & Media
Datasheets
Environmental Information
Mean Well USA RoHS Cert
Mean Well USA REACH
PCN Design/Specification
DIN RAIL MNT CLIP 14/AUG/2019
label marking chg 29/DEC/2020
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.40.9520
-
Additional Resources
Other Names
Standard Package
28
