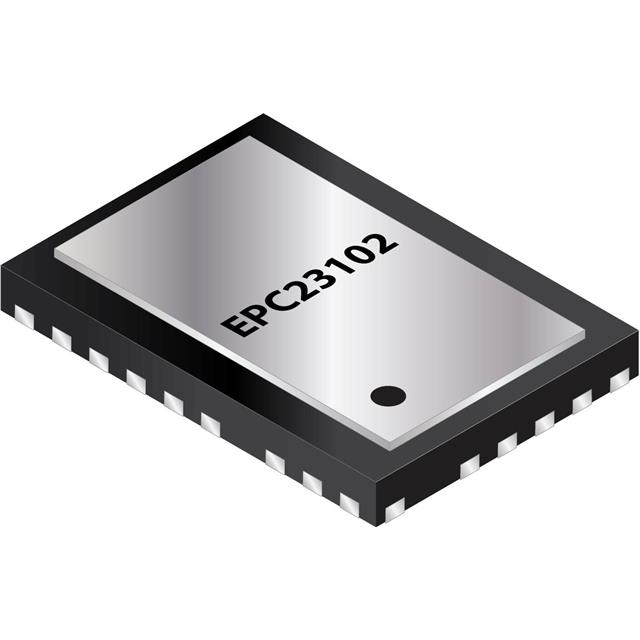

EPC23102ENGRT EPC
Favorite
Compare
Manufacturer:
EPC
MFR Product Number:
EPC23102ENGRT
Product Number:
EPC23102ENGRT
MFR Standard Lead Time:
16 Weeks
Package/Case:
13-PowerWFQFN
Detailed Description:
IC HALF BRIDGE DRIVER 35A 13WQFN
Datasheet:
Descnt:
Half Bridge Driver AC Motors, DC Motors, DC-DC Converters, General Purpose Gallium Nitride (GaN) FETs 13-WQFN-HR (3.5x5)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
EPC
Series
ePower™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Configuration
Half Bridge
Applications
AC Motors, DC Motors, DC-DC Converters, General Purpose
Interface
Logic, PWM
Load Type
Inductive, Capacitive, Resistive
Technology
Gallium Nitride (GaN) FETs
Rds On (Typ)
5.2mOhm LS, 5.2mOhm HS
Current - Output / Channel
35A
Current - Peak Output
-
Voltage - Supply
4.5V ~ 5.5V
Voltage - Load
10V ~ 80V
Operating Temperature
-40°C ~ 125°C (TJ)
Features
Bootstrap Circuit
Fault Protection
Current Limiting, ESD, Over Voltage, UVLO
Mounting Type
Surface Mount, Wettable Flank
Package / Case
13-PowerWFQFN
Supplier Device Package
13-WQFN-HR (3.5x5)
Base Product Number
EPC23102
-
Documents & Media
Datasheets
EPC23102 Preliminary
eGaN® FETs Selection Guide
Environmental Information
EPC RoHS & Halogen Cert
EPC REACH
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
