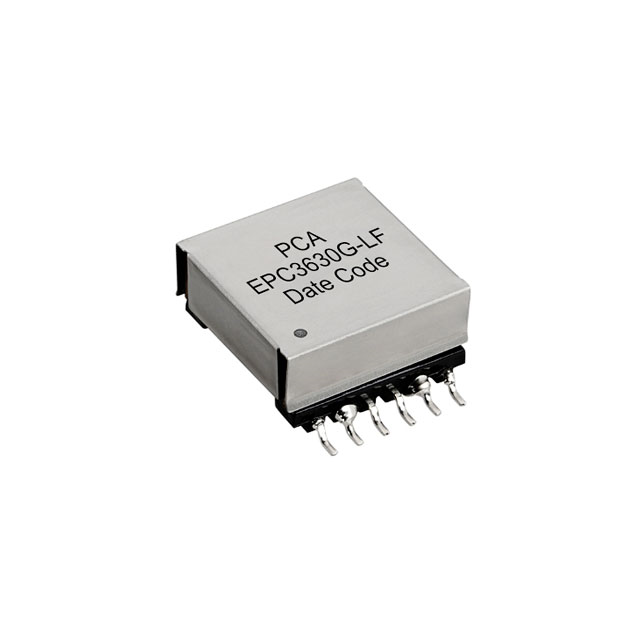

EPC3630G-LF PCA Electronics, Inc.
Favorite
Compare
Manufacturer:
PCA Electronics, Inc.
MFR Product Number:
EPC3630G-LF
Product Number:
EPC3630G-LF
MFR Standard Lead Time:
Package/Case:
Detailed Description:
XFMR FLYBACK DC/DC CONV 15UH SMD
Datasheet:
Descnt:
Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 250kHz Surface Mount
In Stock
148
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
PCA Electronics, Inc.
Series
EPC-EFD25
Packaging
Tray
Part Status
Active
Type
For DC/DC Converters
Applications
Flyback Converters
Intended Chipset
LT4295
Chipset Manufacturer
Analog Devices
Voltage - Primary
40 ~ 57V
Voltage - Auxiliary
24V
Voltage - Isolation
1500Vrms
Inductance Frequency
15µH 100KHz
Frequency
250kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Height - Seated (Max)
0.540" (13.72mm)
Footprint
1.036" L x 1.250" W (26.31mm x 31.75mm)
Style
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.50.4000
-
Additional Resources
Other Names
3110-EPC3630G-LF
Standard Package
35
